Push-in union elbow

Application:

Push-in angle suitable for compressed air hoses in connection with pneumatically controlled components within food, chemical, and pharmaceutical industries.

Construction:

Designed to achieve a high level of sanitation and a long service life.

Quality:

  • Made of POM
  • EPDM gasket

Standards:

EC 1935/2004.

Temperature:

The temperature ranges from +1°C to +98°C.
Working pressure 20 bar.

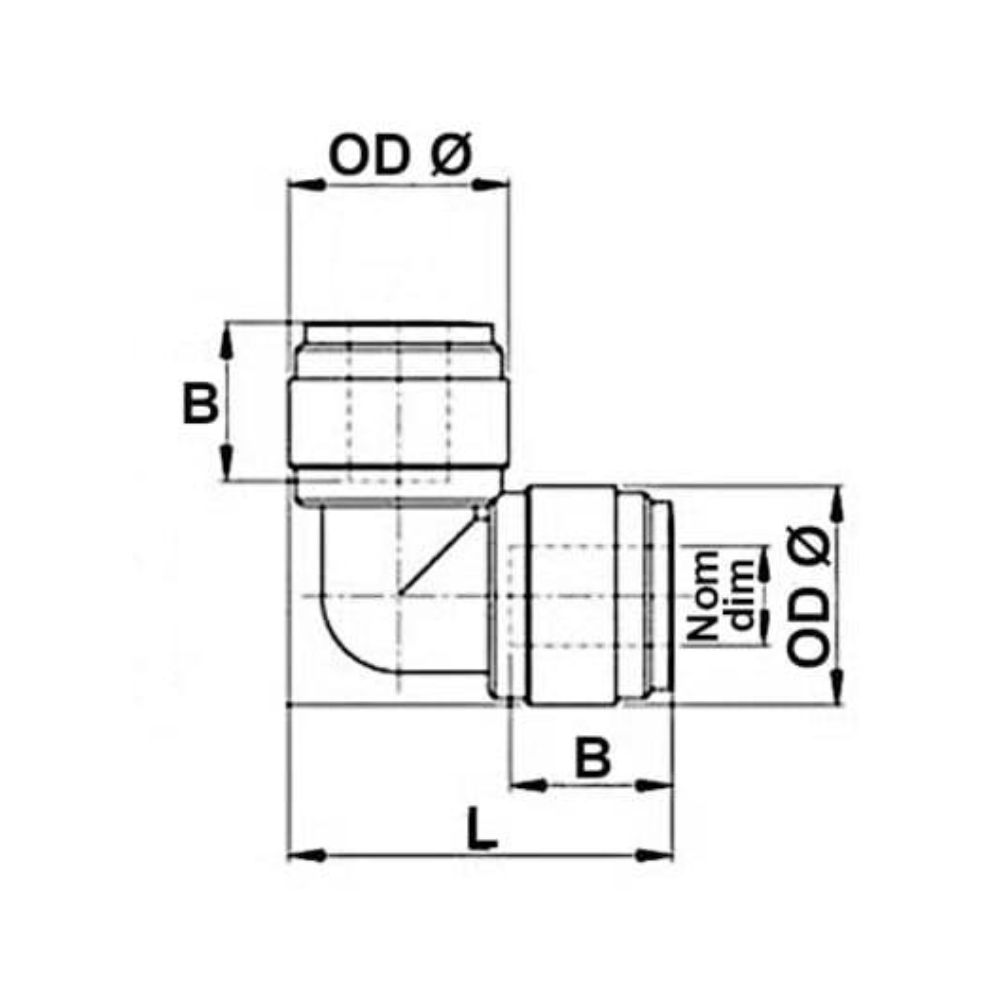

Item number Nominal dim.
mm.		 OD Ø dia.
mm.		 Length B
mm		 Length L
mm.		 Net weight
kg.		 Base unit Quantity
02791HUL0606W 6,0 15,0 16,1 27,6 0,0051 PCS
02791HUL0808W 8,0 17,6 17,5 30,7 0,007 PCS
02791HUL1010W 10,0 20,0 20,1 35,8 0,010 PCS
02791HUL1212W 12,0 23,0 24,7 43,2 0,016 PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
