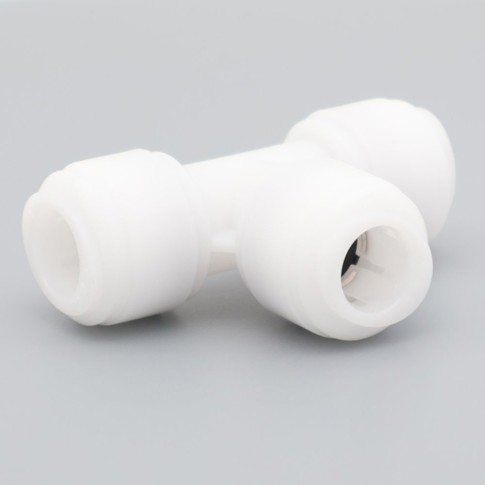

Push-in union tee

Application:

Push-in union tee suitable for compressed air hoses in connection with pneumatically controlled components within food, chemical, and pharmaceutical industries.

Construction:

Designed to achieve a high level of sanitation and a long service life.

Quality:

  • Made of POM
  • EPDM gasket

Standards:

EC 1935/2004.

Temperature:

The temperature ranges from +1°C to +98°C.
Working pressure 20 bar.

Item number Nominal dim.
mm.		 OD Ø dia.
mm.		 Length B
mm		 Length L
mm.		 Net weight
kg.		 Base unit Quantity
02791HUT0606W 6,0 15,0 16,1 40,2 0,007 PCS
02791HUT0808W 8,0 17,6 17,5 43,8 0,0010 PCS
02791HUT1010W 10,0 20,0 20,1 51,6 0,014 PCS
02791HUT1212W 12,0 23,0 24,7 63,4 0,023 PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
