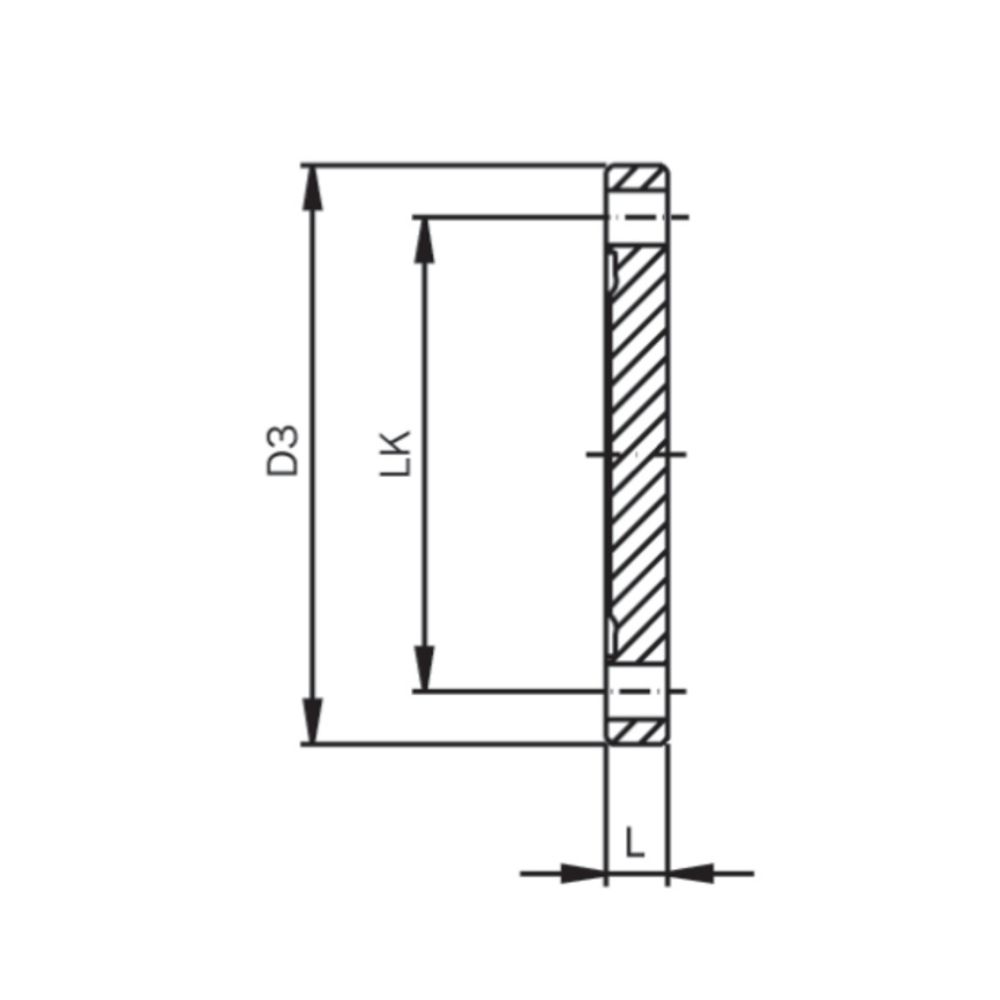

Flange blind liner, DIN, 11864, series A

Aseptic flange blind liner according to the DIN standard 11864, series A.

Made of AISI 316L/EN 1.4404 stainless steel.

Item number	Nom. dim. - DN	Dia. mm. D3	Length L mm.	Net weight kg.	Number of bolts	Bolt parts dia. mm. LK	Base unit
0102277010A	10	054,0	10,0	0,16	4 x ø9,0 mm	37,0	PCS
0102277015A	15	59,0	10,0	0,19	4 x ø9,0 mm	42,0	PCS
0102277020A	20	64,0	10,0	0,22	4 x ø9,0 mm	47,0	PCS
0102277025A	25	70,0	10,0	0,27	4 x ø9,0 mm	53,0	PCS
0102277032A	32	76,0	10,0	0,32	4 x ø9,0 mm	59,0	PCS
0102277040A	40	65,0	10,0	0,37	4 x ø9,0 mm	65,0	PCS
0102277050A	50	94,0	10,0	0,48	4 x ø9,0 mm	77,0	PCS
0102277065A	65	113,0	10,0	0,69	8 x ø9,0 mm	95,0	PCS
0102277080A	80	133,0	12,0	1,15	8 x ø11,0 mm	112,0	PCS
0102277100A	100	159,0	14,0	1,97	8 x ø11,0 mm	137,0	PCS
0102277125A	125	183,0	14,0	2,62	8 x ø11,0 mm	161,0	PCS
0102277150A	150	213,0	16,0	4,12	8 x ø14,0 mm	188,0	PCS

Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
