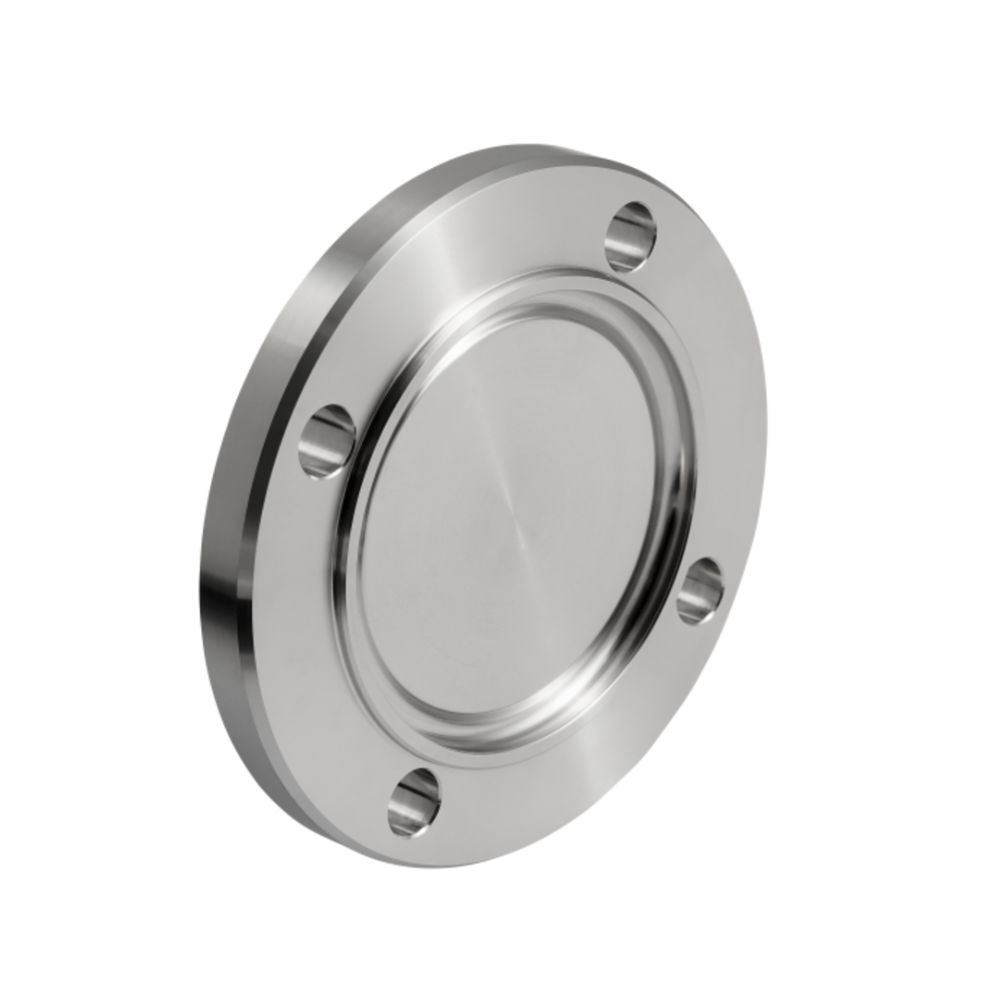

Flange blind nut, DIN, 11864, serie A

Aseptic flange blind nut according to the DIN standard 11864, series A.

Made of stainless steel AISI 316L/EN 1.4404.

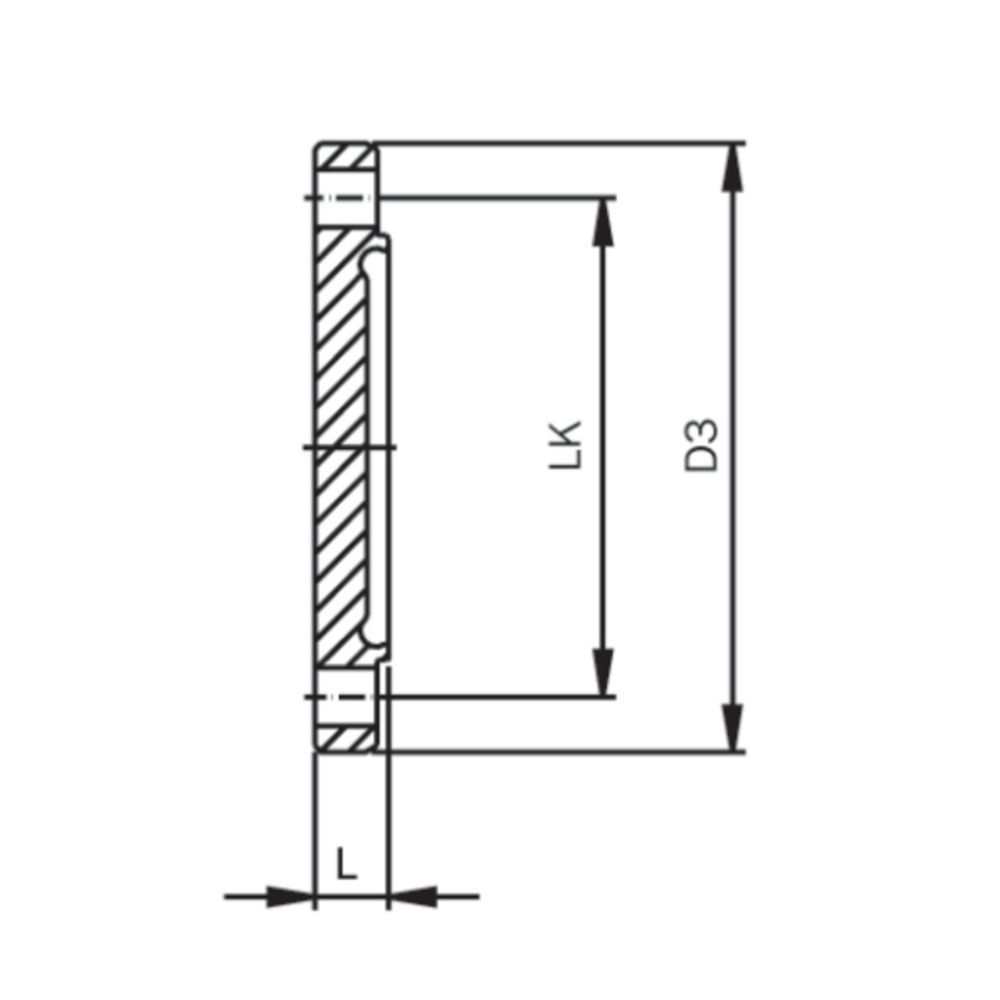

Item number	Net weight kg.	Length L mm.	Dia. mm. D3	Bolt parts dia. mm. LK	Nom. dim. - DN	Number of bolts	Base unit
0102278010A	0,04	11,5	54,0	37,0	10	4 x ø9,0 mm	PCS
0102278015A	0,06	11,5	59,0	42,0	15	4 x ø9,0 mm	PCS
0102278020A	0,08	11,5	64,0	47,0	20	4 x ø9,0 mm	PCS
0102278025A	0,11	11,5	70,0	053,0	25	4 x ø9,0 mm	PCS
0102278032A	0,14	11,5	76,0	59,0	32	4 x ø9,0 mm	PCS
0102278040A	0,18	11,5	82,0	65,0	40	4 x ø9,0 mm	PCS
0102278050A	0,26	11,5	94,0	77,0	50	4 x ø9,0 mm	PCS
0102278065A	0,38	11,5	113,0	95,0	65	8 x ø9,0 mm	PCS
0102278080A	0,63	13,5	133,0	112,0	80	8 x ø11,0 mm	PCS
0102278100A	1,09	15,5	159,0	137,0	100	8 x ø11,0 mm	PCS
0102278125A	1,59	15,5	183,0	161,0	125	8 x ø11,0	PCS
0102278150A	2,52	17,5	213,0	188,0	150	8 x ø14,0 mm	PCS

Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
