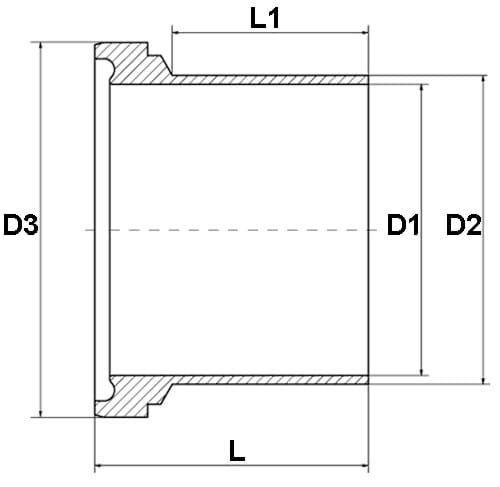

Liner, weld on, DIN, 11864-1, series B

Made of stainless steel AISI 316L/EN 1.4404.

Aseptic liner, weld on following the standard DIN 11864-1, series B.

Item number Nominal dim.
mm. 		D1 dia.
mm. 		D2 dia.
mm. 		Dia. mm.
D3 		Length L
mm. 		Installation dim. L1
mm. 		Net weight
kg. 		Base unit Quantity
0102180013B 13,5 10,3 13,5 21,9 39,0 27,0 0,03 PCS
0102180017B 17,2 14,0 17,2 27,9 39,0 27,0 0,04 PCS
0102180021B 21,3 18,1 21,3 35,9 40,0 27,0 0,06 PCS
0102180026B 26,9 23,7 26,9 42,9 41,0 27,0 0,10 PCS
0102180033B 33,7 29,7 33,7 48,9 47,0 32,0 0,14 PCS
0102180042B 42,4 38,4 42,4 54,9 47,0 32,0 0,16 PCS
0102180048B 48,3 44,3 48,3 66,9 48,0 31,0 0,24 PCS
0102180060B 60,3 56,3 60,3 84,9 62,0 40,0 0,41 PCS
0102180076B 76,1 72,1 76,1 98,9 61,0 40,0 0,51 PCS
0102180088B 88,9 84,3 88,9 118,9 68,0 40,0 0,85 PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
