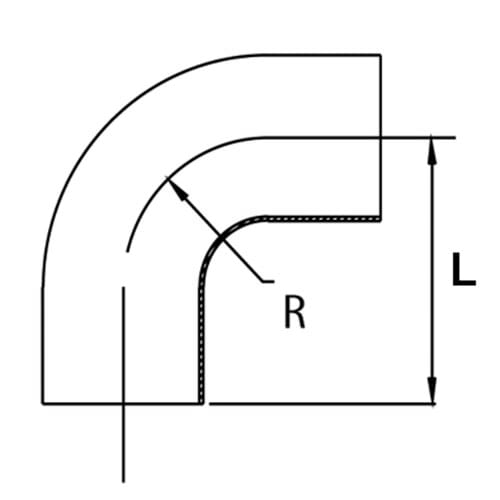

Elbow 90°, DS/SMS

Stained on the inside and ground on the outside.
Delivered with smooth ends.

Made of stainless steel AISI 316.

Download data sheet

Item number	Nominal dim. mm.	Installation dim. L mm.	Radius mm	Thickness mm.	Net weight kg.	Base unit
0101000320	32,0	64,0	32,0	1,20	0,101	PCS
0101000380	38,0	70,0	38,0	1,20	0,138	PCS
0101000640	63,5	105,0	64,0	1,60	0,440	PCS
0101000760	76,0	110,0	76,0	2,00	0,645	PCS
0101001016	101,6	150,0	150,0	2,00	1,107	PCS
0101000250	25,0	55,0	25,0	1,20	0,067	PCS
0101000510	51,0	82,0	51,0	1,20	0,208	PCS

Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
