Elbow 45°, DS/SMS

Stained on the inside and ground on the outside.
Delivered with smooth ends.

Made of stainless steel AISI 316.

Download data sheet

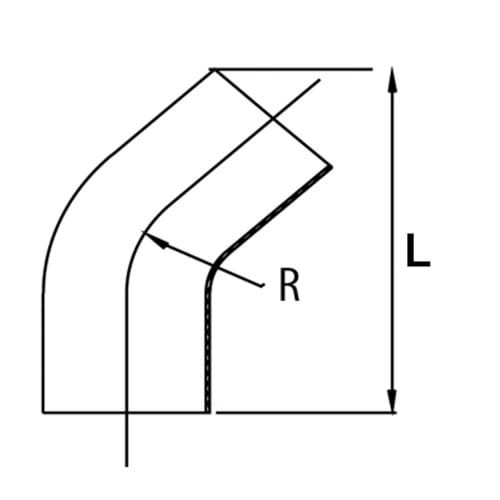

Item number	Nominal dim. mm.	Installation dim. L mm.	Radius mm	Thickness mm.	Net weight kg.	Base unit
0101020250	25,0	70,0	25,0	1,20	0,049	PCS
0101020320	32,0	78,0	32,0	1,20	0,069	PCS
0101020380	38,0	87,0	38,0	1,20	0,089	PCS
0101020510	51,0	120,0	51,0	1,20	0,162	PCS
0101020640	63,5	136,0	64,0	1,60	0,301	PCS
0101020760	76,0	157,0	76,0	2,00	0,524	PCS
0101021020	101,6	227,0	150,0	2,00	1,045	PCS

Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
