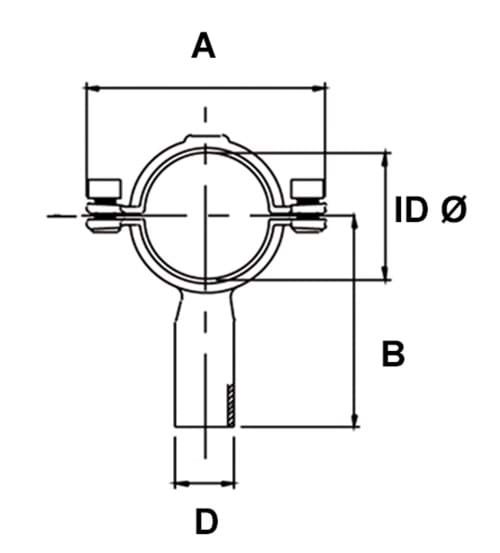

Pipeclip long shaft, 150 mm, DS/SMS, stainless AISI 304
Made of stainless steel AISI 304.
Delivered with welding base and two Allen screws.
Download productsheet
Product number
Nominal dim.
mm.
ID Ø dia.
mm.
Length B
mm
Width A
mm
Shaft D dia.
mm
Net weight
kg.
Base unit
0102020250
25,0
27,0
150,0
80,0
21,3
0,260
PCS
0102020380
38,0
40,0
150,0
93,0
21,3
0,300
PCS
0102020510
51,0
53,0
150,0
103,0
21,3
0,300
PCS
0102020640
63,5
65,5
150,0
118,0
21,3
0,320
PCS
0102020760
76,1
78,0
150,0
132,0
21,3
0,340
PCS
0102021020
101,6
104,0
150,0
157,0
21,3
0,380
PCS
