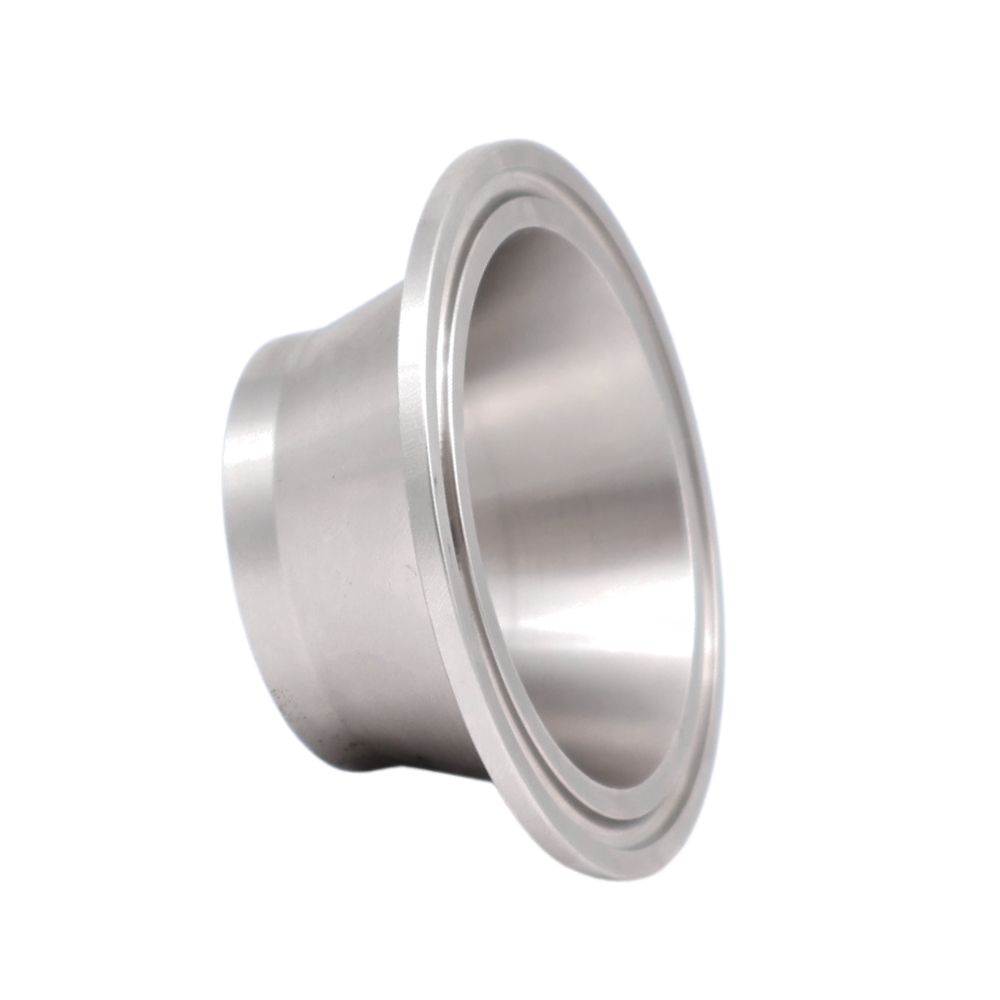

Clamp reduction liner, DS/SMS/ISO, stainless AISI 316

Made of stainless steel AISI 316.

Designed with collar for welding on stainless steel dairy pipes.

Download productsheet

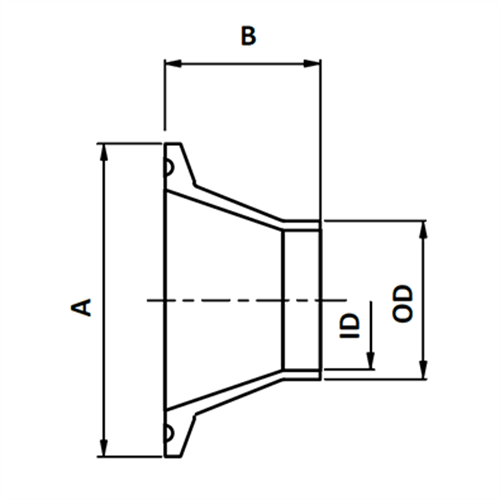

Product number Nominal dim.
mm. 		ID Ø dia.
mm. 		OD Ø dia.
mm. 		Length B
mm 		A dia.
mm 		Net weight
kg. 		Base unit
0101450251
25,0
17,5
20,0
21,5
50,4
0,0
PCS
0101450381
38,0
22,6
25,5
21,5
50,4
0,056
PCS
0101450511
51,0
22,6
25,6
21,5
63,9
0,0
PCS
0101450512
51,0
35,6
38,6
25,0
63,9
0,0
PCS
0101450641
63,5
22,6
25,6
21,5
77,4
0,0
PCS
0101450642
63,5
35,6
38,6
21,5
77,4
0,0
PCS
0101450643
63,5
48,6
51,6
21,5
77,4
0,0
PCS
0101450761
76,0
35,6
38,6
21,5
90,9
0,0
PCS
0101450762
76,0
48,6
51,6
21,5
90,9
0,0
PCS
0101450763
76,0
60,3
64,1
21,5
90,9
0,0
PCS
0101451021
101,6
48,6
51,6
21,5
118,9
0,0
PCS
0101451022
101,6
60,3
64,1
21,5
118,9
0,0
PCS
0101451023
101,6
72,9
76,7
21,5
118,9
0,0
PCS
