012505B Spændering, CLAMP union med fingermøtrik.png

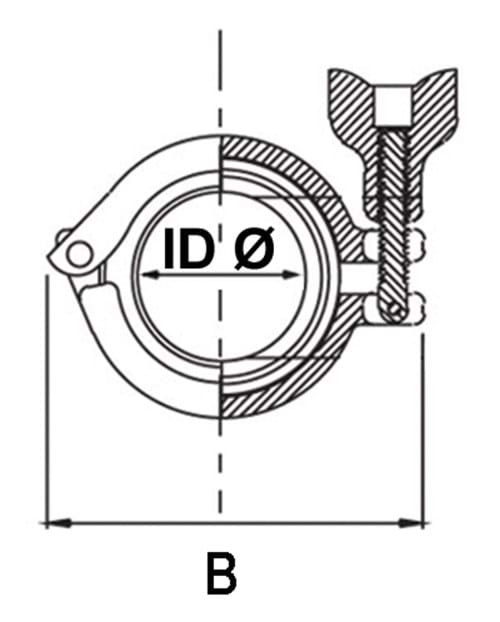

Clamp ring, DS/SMS/ISO, stainless AISI 304

Made of stainless steel AISI 304.

Hinged at one side and with thumbscrew to close the ring.

Download productsheet

Product number	Nominal dim. mm.	ID Ø dia. mm.	Længde B mm.	Net weight kg.	Base unit
0101400380	25,0 & 38,0	50,5	85,0	0,296	PCS
0101400510	51,0	64,0	99,0	0,352	PCS
0101400640	63,5	77,5	112,0	0,390	PCS
0101400760	76,1	91,0	126,0	0,432	PCS
0101401020	101,6	119,0	154,0	0,554	PCS
