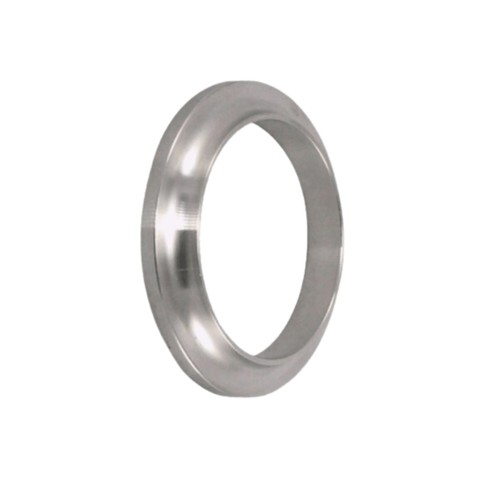

SMS liner, weld on

Internal surface roughness of R 0.8 µ and provided with a batch number.
Designed with collar for welding on stainless steel dairy pipes.

Made of AISI 316L / EN 1.4404 stainless steel.

Download data sheet

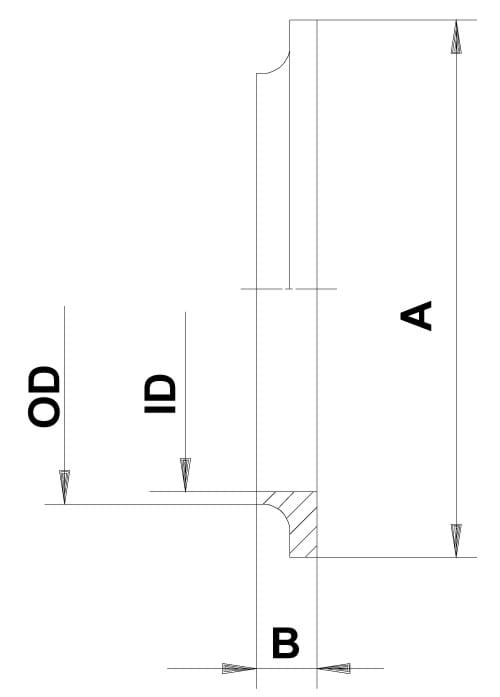

Item number	Nominal dim. mm.	A dia. mm	ID Ø dia. mm.	OD Ø dia. mm.	Length B mm	Net weight kg.	Base unit
0101240250	25,0	35,5	22,6	25,6	7,5	0,020	PCS
0101240380	38,0	55,0	35,6	38,6	9,0	0,050	PCS
0101240510	51,0	65,0	48,6	51,6	9,0	0,060	PCS
0101240640	63,5	80,0	60,3	64,1	9,0	0,090	PCS
0101240760	76,1	93,0	72,9	76,7	10,0	0,130	PCS
0101241020	101,6	127,0	97,6	102,5	12,0	0,290	PCS

Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
