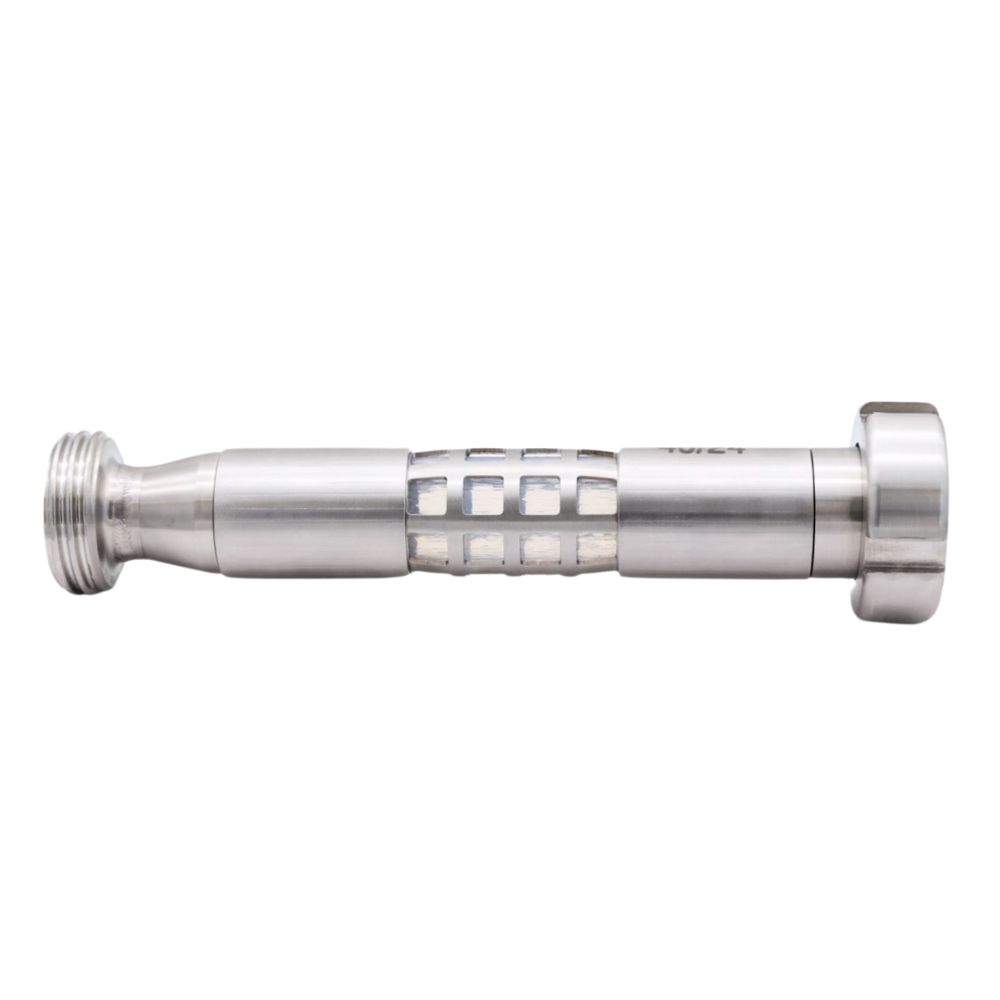

In-Line sight glass, fluoride thermoplastic with protective net

Application:

Sight glasses for food and pharmaceuticals where glass is not allowed.
Can also be used as level glass for tanks.

Construction:

The pipe is made of fluoride thermoplastic according to FDA
Ends and length according to customer specifications (up to 3 metres)
High chemical resistance to many organic and inorganic liquids
Can be mounted with several shapes and coupling sizes
The protective net is made of stainless steel AISI 304

Temperature:

The temperature ranges from -40°C to +150°C.

Safety factor:

Safety factor: 3 times the working pressure.

Quality:

Shatterproof FEP or PTFE. FEP is a co-polymer of tetrafluorethylene and hexafluorpropylene. The couplings are made of stainless steel AISI 316.

Complies with European food requirements, including EU 10/2011
Shatterproof
Smooth on the inside and outside
Good anti-stick properties
Non-combustible
Extremely durable and UV stable
Can be steam sterilized
Low friction coefficient

Download data sheet

Item number	Nominal dim. mm.	Connection 1	Connection 2	Length L mm.	Working pressure bar	Base unit
01302502070000N	25,0	ø 25 mm. weld on	ø 25 mm. weld on	207,0	12,0	PCS
01302502070404N	25,0	1" ISO Clamp	1" ISO Clamp	207,0	12,0	PCS
01302502100404N	25,0	1" ISO Clamp	1" ISO Clamp	210,0	12,0	PCS
01302502140202NN	25,0	1" SMS nut	1" SMS nip.	214,0	12,0	PCS
01302502200101N	25,0	1" DS nut	1" DS nut	220,0	12,0	PCS
01302502200101NN	25,0	1" DS nut	1" DS nip.	220,0	12,0	PCS
01302502200202N	25,0	1" SMS nut	1" SMS nut	220,0	12,0	PCS
01303801901414N	38,0	DN40 Clamp	DN40 Clamp	190	10,0	PCS
01303802070404N	38,0	1½" ISO Clamp	1½" ISO Clamp	207,0	10,0	PCS
01303802100404N	38,0	1½" ISO Clamp	1½" ISO Clamp	210,0	10,0	PCS
01303802200101N	38,0	1½" DS nut	1½" DS nut	220,0	10,0	PCS
01303802200202N	51,0	1½" SMS nut	1½" SMS nut	220,0	10,0	PCS
01303802200303N	38,0	DN40 nut	DN40 nut	220,0	10,0	PCS
01303802200303N?	38,0	DN40 nut	DN40 nut	220,0	10,0	PCS
01303802200808N	38,0	2" ISO Clamp	2" ISO Clamp	220,0	10,0	PCS
01303804000707N	38,0	DN50 nut	DN50 nut	400,0	10,0	PCS
01303812000404N	38,0	1½" ISO Clamp	1½" ISO Clamp	1200,0	10,0	PCS
01305102200101N	51,0	2" DS nut	2" DS nut	226,0	10,0	PCS
01305102250000N	51,0	ø 51,0 mm. weld on	ø 51,0 mm. weld on	225,0	10,0	PCS
01305102250101N	51,0	2" DS nut	2" DS nut	225,0	10,0	PCS
013051022501N01NN	51,0	2" DS nip.	2" DS nip.	225,0	10,0	PCS
01305102250303N	51,0	DN50 nut	DN50 nut	225,0	10,0	PCS
01305102250404N	51,0	2" ISO Clamp	2" ISO Clamp	225,0	10,0	PCS
0130510225P0P0N	51,0	DN50 loose flange	DN50 loose flange	225,0	10,0	PCS
013051023603N03NN	51,0	DN50 nip.	DN50 nip.	236,0	10,0	PCS
01305102500101N	51,0	2" DS nut	2" DS nut	250,0	10,0	PCS
01305102500101NN	51,0	2" DS nut	2" DS nip.	250,0	10,0	PCS
01305102500202N	51,0	2" SMS nut	2" SMS nut	250,0	10,0	PCS
01305102500404N	51,0	2" ISO Clamp	2" ISO Clamp	250,0	10,0	PCS
01305102600404N	51,0	2" ISO Clamp	2" ISO Clamp	260,0	10,0	PCS
01305105000404N	51,0	2" ISO Clamp	2" ISO Clamp	500,0	10,0	PCS
01306402200101N	63,5	2½" DS nut	2½" DS nut	243,0	10,0	PCS
01306402500404N	63,5	2½" ISO Clamp	2½" ISO Clamp	250,0	10,0	PCS
0130642401N1NN	63,5	2½" DS nip.	2½" DS nip.	240,0	10,0	PCS
01307602260404N	76,1	3" ISO Clamp	3" ISO Clamp	226,0	9,0	PCS
01307602430202N	76,1	3" SMS nut	3" SMS nut	243,0	9,0	PCS

Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
