Sight glass for ISO Clamp union, Borosilicate

Application:

For sight glass for Clamp ISO union. Used for food and pharmaceuticals.

Construction:

The glass is made constructed of borosilicate glass, which provides excellent strength and stability.
Without safety grid.

Temperature:

The temperature ranges from -30°C to +280°C.

Standards:

Certificate of conformity to EN 10204-3.1 or 3.2.

Quality:

The housing is made of stainless steel.
The glass is made of borosilicate glass.

Download data sheet

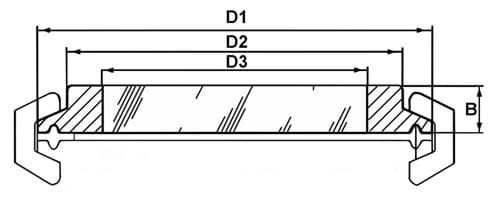

Item number	Nominal dim. inch	Nominal dim. mm.	D1 dia. mm.	D2 dia. mm.	Dia. mm. D3	Height B mm	Working pressure bar	Min. temperature C	Max. temperature C
0137160380	1" & 1½"	25,0 & 38,0	50,5	41,0	35,0	10,0	16,0	-30,0	+280,0
0137160510	2"	51,0	64,0	52,0	30,0	10,0	16,0	-30,0	+280,0
0137160640	2½"	63,5	77,5	63,5	35,0	10,0	16,0	-30,0	+280,0
0137160760	3"	76,0	91,0	76,0	40,0	10,0	10,0	-30,0	+280,0
0137161020	4"	101,6	119,0	101,0	55,0	12,0	10,0	-30,0	+280,0

Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
