Push-in union tee

Application:

Push-in union tee for compressed air hoses in connection with pneumatically controlled components within food, chemical, and pharmaceutical industries.

Construction:

Designed to achieve a high level of sanitation and a long service life.
Metric tube.

Quality:

All parts are made of stainless steel. Body in AISI 316, lock claw in AISI 303. Gasket is made of Viton rubber.

Temperature:

The temperature ranges from -20°C to +150°C.
Maximum working pressure of 20 bar at +20°C.

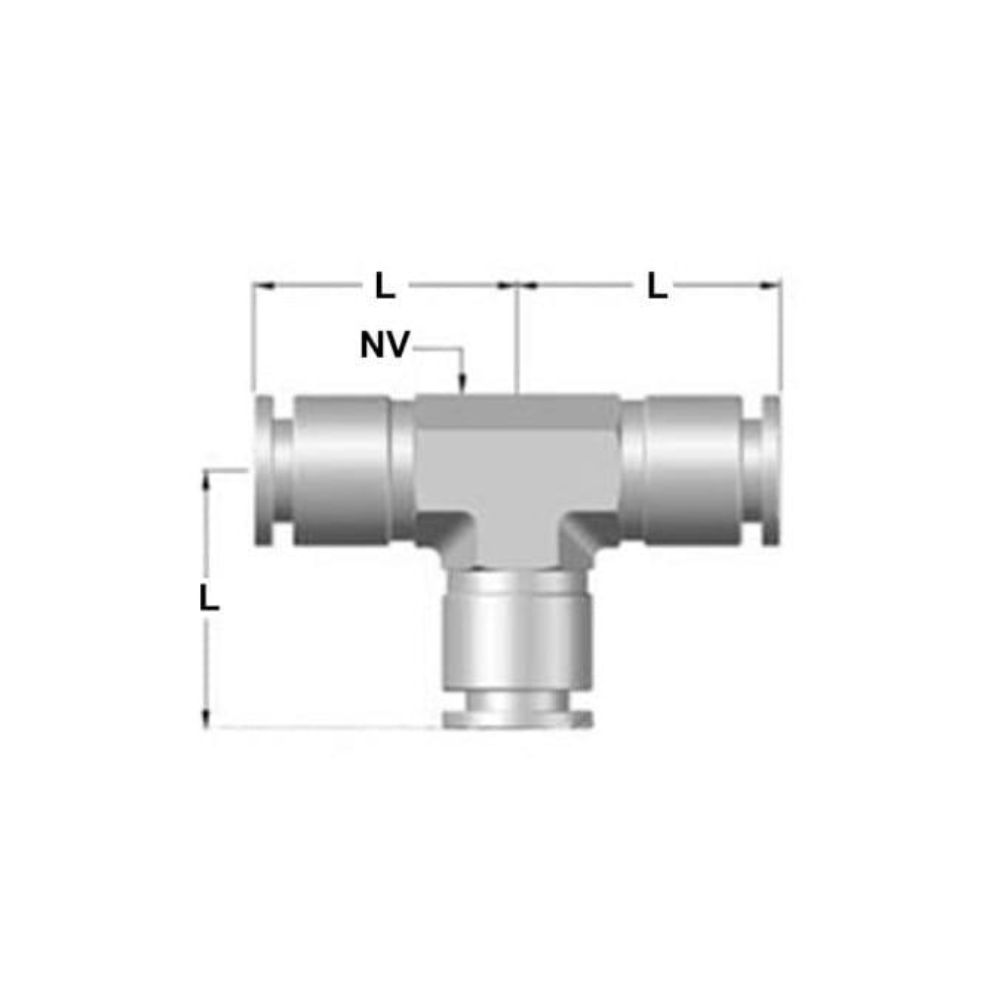

Item number Nominal dim.
mm.		 Installation dim. L
mm.		 Key width NV
mm.		 Net weight
kg.		 Base unit Quantity
0278120400 4,0 20,3 10,0 0,027 PCS
0278120600 6,0 22,0 12,0 0,037 PCS
0278120800 8,0 23,2 14,0 0,043 PCS
0278121000 10,0 24,3 16,0 0,068 PCS
0278121200 12,0 26,7 19,0 0,099 PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
