Cleanroom-produced cross connector PP

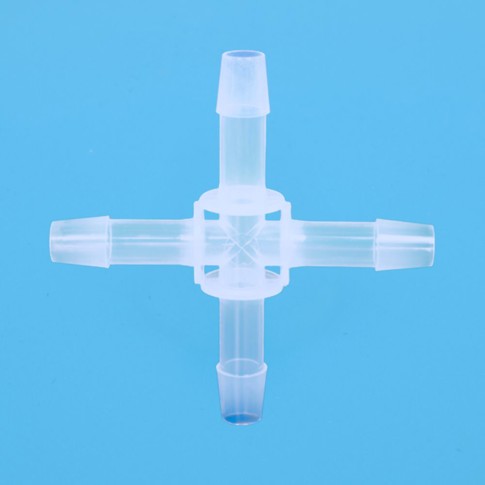

Cross connector PP

Application:

Specially developed to fulfil the needs for single-use components in the biotechnology and pharmaceutical industry. The cross connector allows you to mount 4 separate hoses. An optimal assembly solution for the pharmaceutical industry, and an ideal choice for both single-use assemblies and aseptic hose connections.

Construction:

The cross collector is made of polypropylene (PP) and manufactured and packaged in an ISO-7-certified cleanroom. It is supplied in packs of 10, which are double wrapped to ensure aseptic handling.

Sterilization:

Autoclave up to 135˚C for a maximum of 30 minutes
Gamma irradiation up to 50 KGy

Storage Conditions:

Store in original packaging when possible
Keep in a cool, dry environment away from direct sunlight
Avoid exposure to stress or harsh chemicals
Suitable for warehouse conditions between 5°C and -40°C

Standards:

FDA 21 CFR 177.1520, USP <88> Biological Reactivity Tests (In Vivo) and USP <87> Biological Reactivity Tests (In Vitro), REACH, RoHS, TSE/BSE free. The connection is free from melamine, phthalates, and Bisphenol A.

Item number	Nominal dim. mm.	Nominal dim. inch	Antal per enhed	Base unit
P019965060064	6,4 x 6,4 x 6,4 x 6,4 mm	1/4"	10	PCS
P019965060095	9,5 x 9,5 x 9,5 x 9,5 mm	3/8"	10	PCS
P019965060127	12,7 x 12,7 x 12,7 x 12,7 mm	1/2"	10	PCS
P019965060191	19,1 x 19,1 x 19,1 x 19,1 mm	3/4"	10	PCS

Item number

Nominal dim.
mm.

Nominal dim.
inch

Antal per enhed

Base unit

Quantity

P019965060064

6,4 x 6,4 x 6,4 x 6,4 mm

1/4"

PCS

P019965060095

9,5 x 9,5 x 9,5 x 9,5 mm

3/8"

PCS

P019965060127

12,7 x 12,7 x 12,7 x 12,7 mm

1/2"

PCS

P019965060191

19,1 x 19,1 x 19,1 x 19,1 mm

3/4"

PCS
