Single-use couplings: How to ensure unbroken sterile flows

In pharmaceutical and biotech production, a single-use solution is only as strong as its weakest connector. As we have discussed in previous articles, the ISO 7 cleanroom provides the optimal sterile environment, whilst platinum-cured silicone hoses ensure the integrity of the medium during transport. But what happens when the hose meets the rest of your process equipment? It is at the transition point itself – in the mechanical connection – that your process safety is truly put to the test.

We round off our ISO 7 theme with a look at the critical single-use couplings and how they can be integrated into both your new and existing systems.

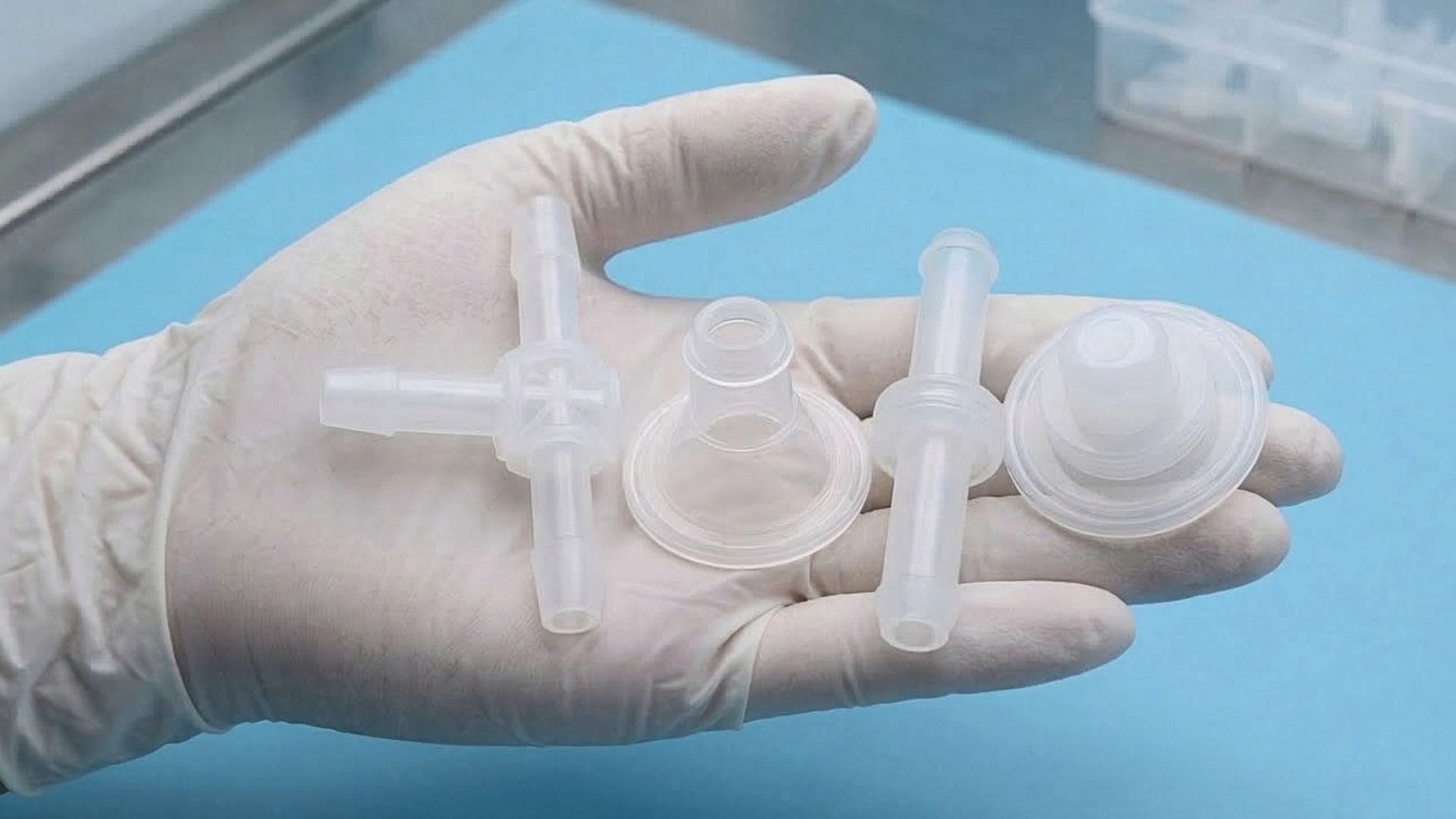

Single-use couplings, also commonly referred to as aseptic connectors, are designed for single use. In other words, you use them together with your silicone hoses for a single campaign or batch, after which they are discarded. This means you avoid time-consuming cleaning of the connectors between production runs whilst significantly reducing the risk of cross-contamination.

The single-use system is ideal for those of you who work with frequent batch changes or are testing brand-new products. With single-use couplings, it is easy to switch over quickly and safely without major investments in fixed infrastructure and without compromising on either quality or compliance.

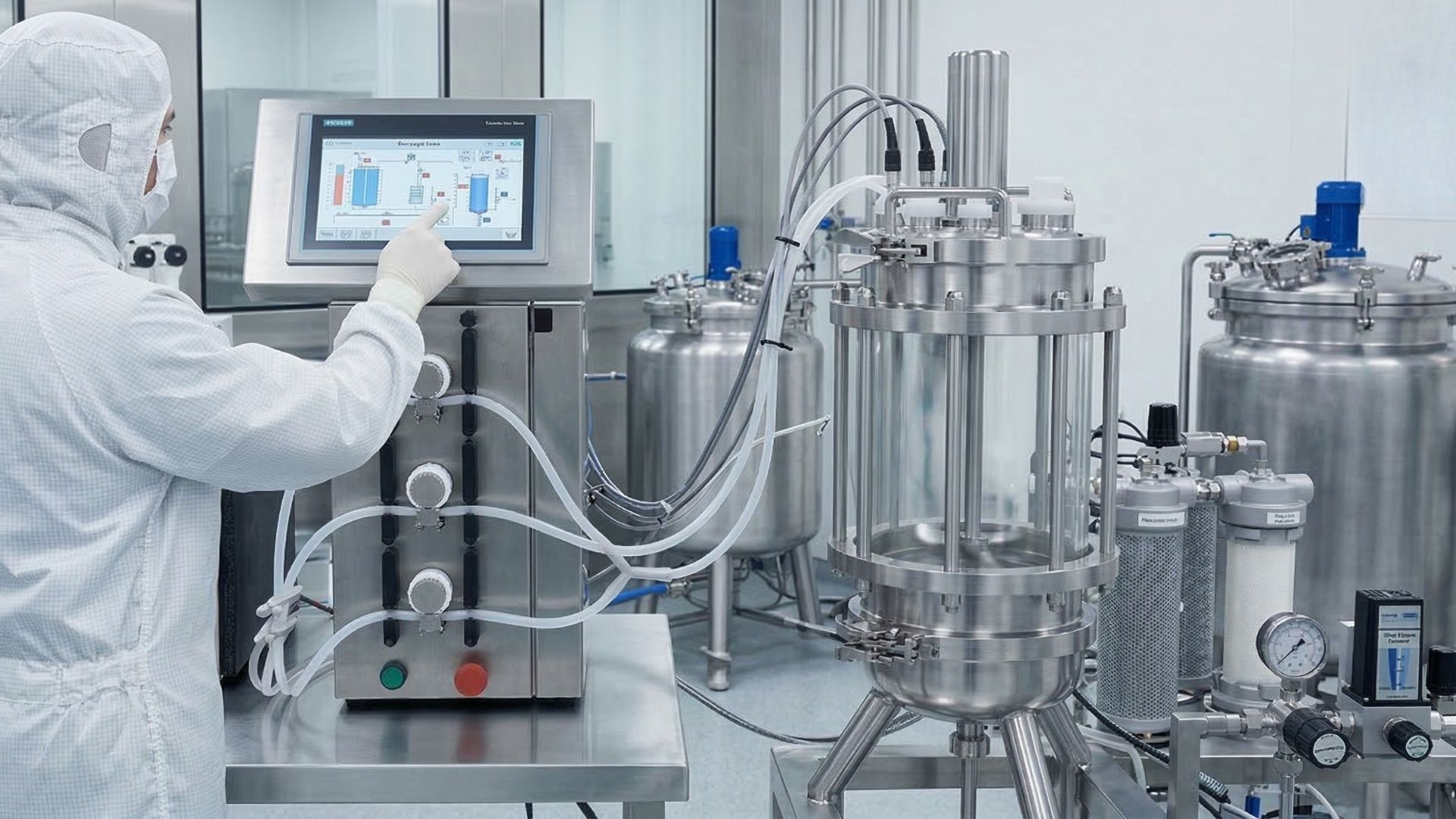

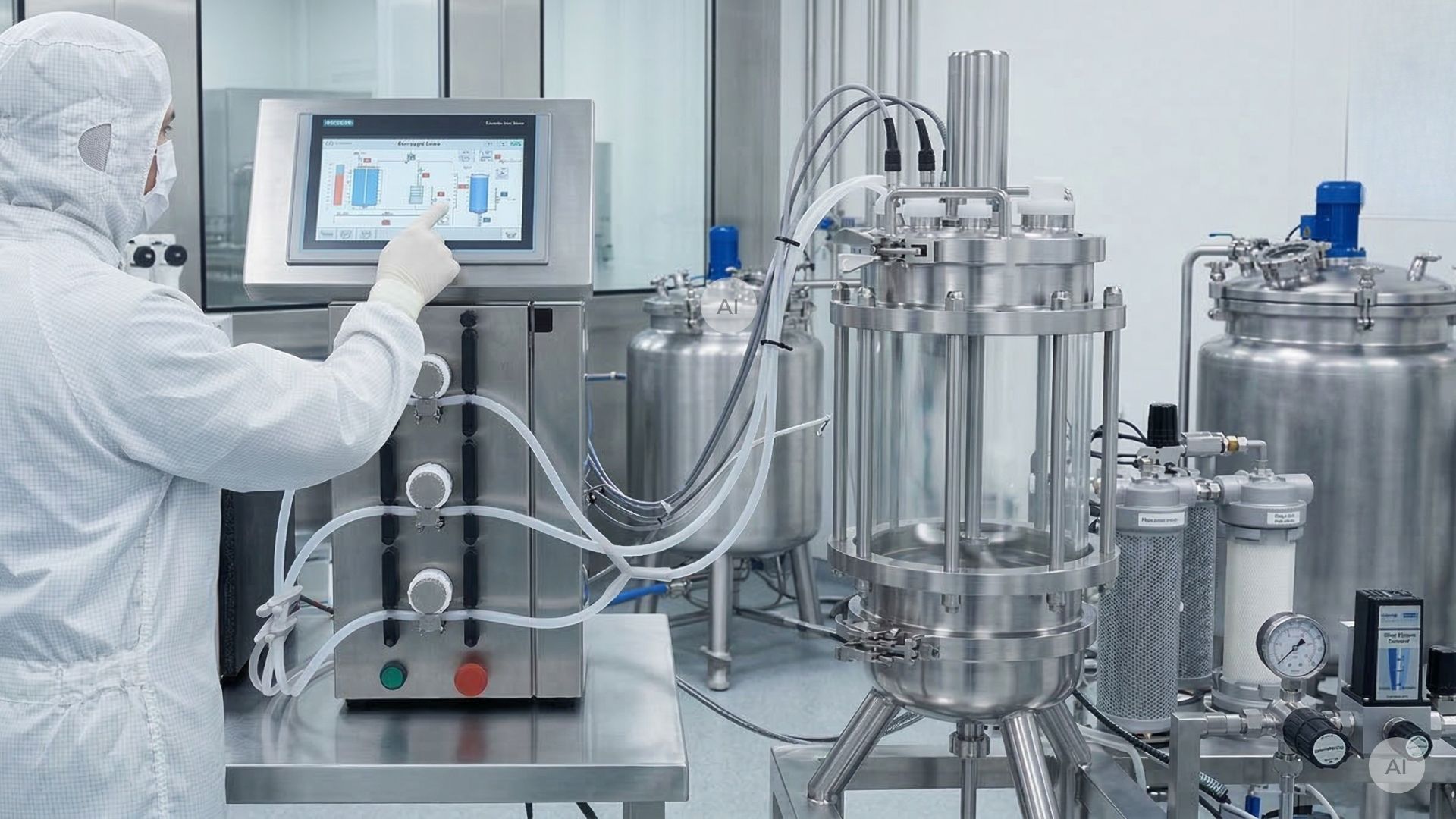

In many modern plants, there can be a significant advantage to working with hybrid systems. Single-use couplings are designed to function in a fully single-use environment, but they are just as robust when integrated directly with your existing stainless steel components – provided that cleaning and sterilisation of the system continue to be carried out correctly.

This is an advantage in plants where significant investment has already been made in stainless steel tanks, pipes and CIP/SIP processes, but where you wish to add new products or production lines without building entirely from scratch. It can also be beneficial for high-volume production and smaller batches that require rapid changeovers.

Take, for example, a plant where your stainless steel pipes, mixers, filters and pumps form the fixed foundation. Single-use couplings can be valuable where you need flexibility when adding, moving or reconfiguring connections around the process equipment. In practice, this means you can easily integrate single-use couplings directly onto your stationary equipment. It simply requires that the couplings are compatible with your existing connections. As long as the dimensions are the same, you can, for example, mount our clamp connector directly onto a stainless steel hose clamp with a clamp end.

Overall, this gives you the best of both worlds: a robust basic installation combined with high adaptability.

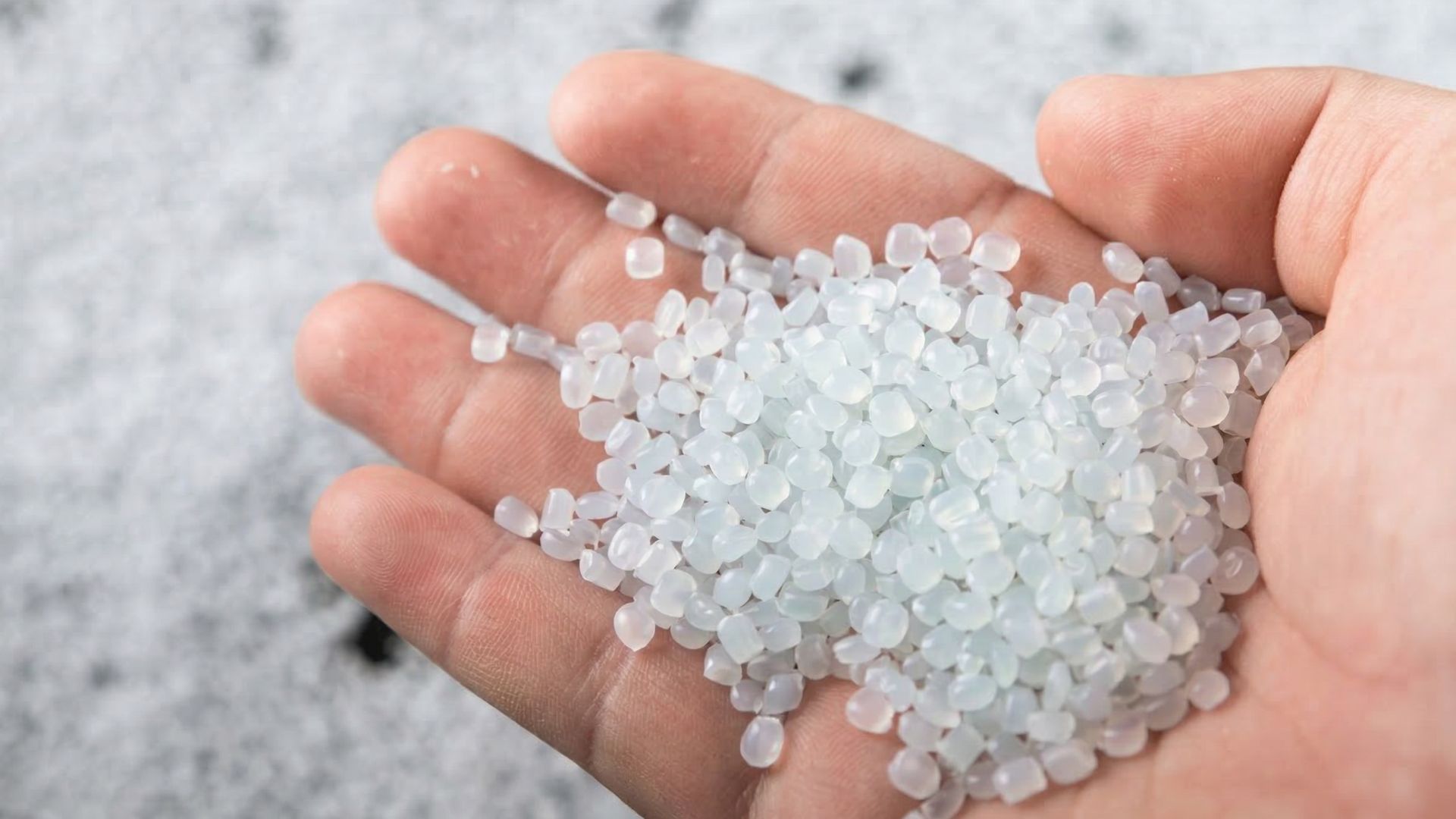

Without the right material, operational reliability is compromised. The choice of plastic type for your hose configurators determines, in practice, whether the connection can withstand the chemistry of the process medium and the system’s temperature fluctuations without failing. Single-use couplings for biotech and pharmaceutical production are typically manufactured from high-quality plastic materials such as polypropylene, polycarbonate or polysulphone.

In our range, you will find couplings made from polypropylene (PP), which combine high chemical resistance with robustness. With PP components that meet the strictest pharmaceutical standards, you reduce the risk of material failure and unwanted particle release. We offer, among other things:

• Straight and reducers: For sterile connections or transitions between hoses of the same or different dimensions.
• T-, Y- and cross-connectors: For distribution or merging of flow in single-use tubing systems, e.g. media, buffers and product.
• Clamp connectors and end caps: For secure connections between single-use tubing systems and equipment such as pumps, filters and mixers.

Our single-use couplings have been developed with a focus on quality, maximum safety and full compliance with international standards. They are manufactured in accordance with FDA 21 CFR 177.1520 and tested to USP <87> and <88>. This ensures they meet the requirements of, among other things, GMP regulations.

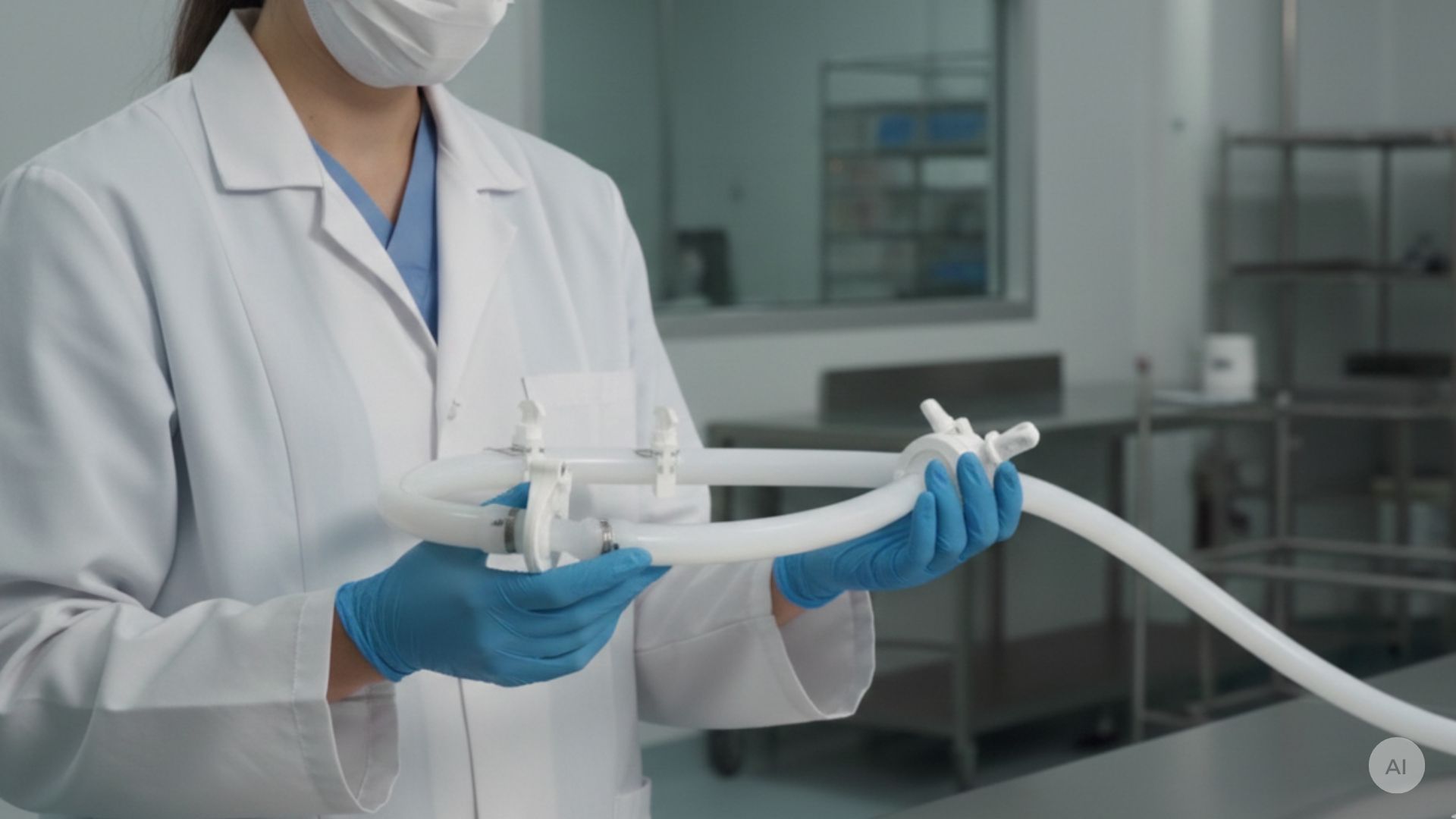

To achieve the absolute highest level of safety, the connector should never be viewed as a standalone component, but as part of a fully integrated system. Here, single-use assemblies offer a comprehensive solution. You receive a complete, ready-to-use tubing set, where hoses and connectors are pre-assembled with precision in an ISO 7 cleanroom.

By switching to a ‘plug-and-play’ solution, you remove the complexity from your own production and minimise the biggest source of contamination: human activity. When your staff no longer have to fit fittings themselves in the sterile zone, you eliminate the risk of handling errors and particle release. This saves valuable set-up time, makes daily operations easier for operators and strengthens your overall process validation, as every single assembly is tested and verified before it reaches you.

Single-use is about creating an unbroken and safe flow from start to finish. By combining the sterility of a cleanroom environment with the right materials and connection options, we protect both your products and processes.

Are you in the process of assessing what your next setup should look like? Contact us for a technical review by phone +45 7020 0422 or via email at inquiry@alfotech.eu.
