Cleanroom-produced Y-connector PP

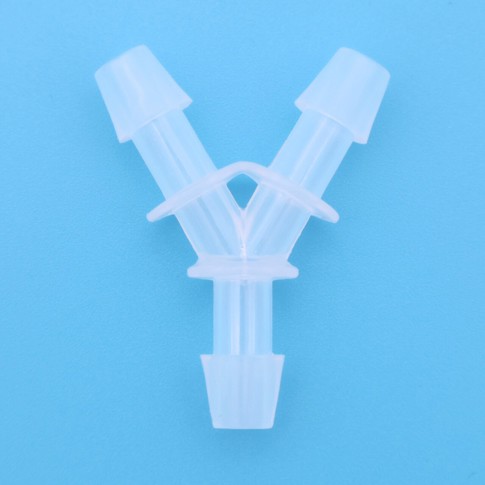

Y-connector PP

Application:

Y-tube connector is moulded in PP plastic and ideal for single-use assemblies and aseptic tube connections in the biotechnology and pharmaceutical industries.

Construction:

Hose connector is made of polypropylene and is manufactured and packaged in ISO-7 certified cleanroom.

The hose connectors are delivered in packs of 10 pieces that are double packed for aseptic production.

Sterilization:

Autoclave up to 135˚C for a maximum of 30 minutes
Gamma irradiation up to 50 KGy

Storage Conditions:

Store in original packaging when possible
Keep in a cool, dry environment away from direct sunlight
Avoid exposure to stress or harsh chemicals
Suitable for warehouse conditions between 5°C and -40°C

Standards:

FDA 21 CFR 177.1520 , USP <88> Biological Reactivity Tests (In Vivo) and USP <87> Biological Reactivity Tests (In Vitro), REACH, RoHS, TSE/BSE free. The connection is free from melamine, phthalates, and Bisphenol A.

Item number	Nominal dim. mm.	Nominal dim. inch	Antal per enhed	Base unit
P019965010032	3,2 x 3,2 x 3,2 mm	1/8"	10	PCS
P019965010048	4,8 x 4,8 x 4,8 mm	3/16"	10	PCS
P019965010064	6,4 x 6,4 x 6,4 mm	1/4"	10	PCS
P019965010095	9,5 x 9,5 x 9,5 mm	3/8"	10	PCS
P019965010127	12,7 x 12,7 x 12,7 mm	1/2"	10	PCS
P019965010191	19,1 x 19,1 x 19,1 mm	3/4"	10	PCS

Item number

Nominal dim.
mm.

Nominal dim.
inch

Antal per enhed

Base unit

Quantity

P019965010032

3,2 x 3,2 x 3,2 mm

1/8"

PCS

P019965010048

4,8 x 4,8 x 4,8 mm

3/16"

PCS

P019965010064

6,4 x 6,4 x 6,4 mm

1/4"

PCS

P019965010095

9,5 x 9,5 x 9,5 mm

3/8"

PCS

P019965010127

12,7 x 12,7 x 12,7 mm

1/2"

PCS

P019965010191

19,1 x 19,1 x 19,1 mm

3/4"

PCS
