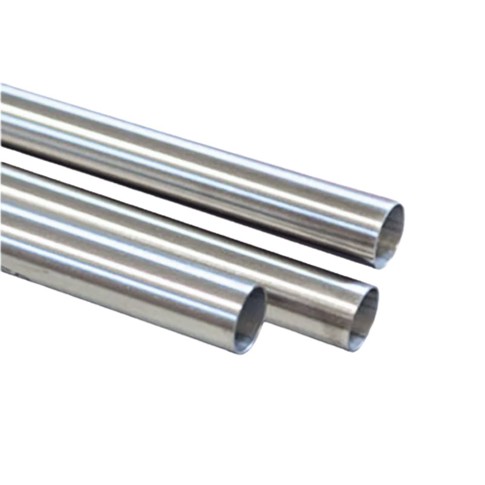

Dairy pipe, DIN

Welded and with re-rolled weld seams.
Not annealed, externally polished.

Made of stainless steel AISI 316L / EN 1.4404.

Standard DIN 11852.

Note: Delivered in lengths of 6.0 meters.

Item number	Nom. dim. - DN	Nominal dim. mm.	OD Ø dia. mm.	Thickness T mm.	Unit length meter	Net weight kg.	Base unit
0103020150	15	15,0	19,0	1,50	6,0	0,660	MTR
0103020200	20	20,0	23,0	1,50	6,0	0,770	MTR
0103020250	25	25,0	29,0	1,50	6,0	0,995	MTR
0103020320	32	32,0	35,0	1,50	6,0	1,258	MTR
0103020400	40	40,0	41,0	1,50	6,0	1,484	MTR
0103020500	50	50,0	53,0	1,50	6,0	1,934	MTR
0103020650	65	65,0	70,0	2,00	6,0	3,400	MTR
0103020800	80	80,0	85,0	2,00	6,0	4,160	MTR
0103021000	100	100,0	104,0	2,00	6,0	5,100	MTR
0103021250	125	125,0	129,0	2,00	6,0	6,400	MTR
0103021500	150	150,0	154,0	2,00	6,0	7,610	MTR
X0103020100	10		13,0	1,5	6,0	0,43	PCS

Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
