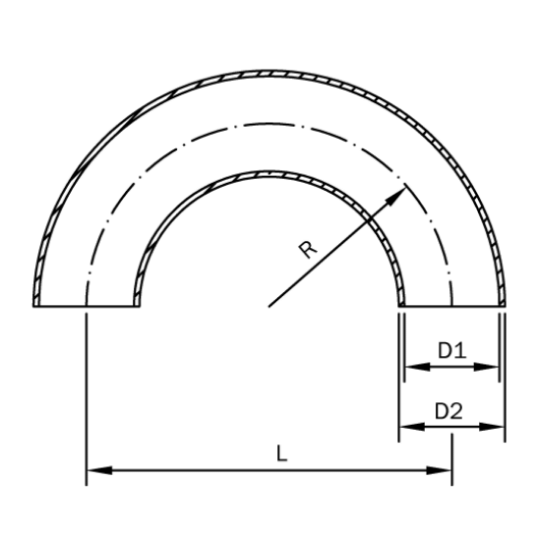

Elbow, 180°, DIN

The Elbow is stained on the inside and ground on the outside.
Delivered with smooth ends.

Made of stainless steel AISI 316L / EN 1.4404.

Standard DIN 11852.

Item number	Nominal dim. mm.	Nom. dim. - DN	Installation dim. L mm.	Radius mm	Thickness T mm.	Net weight kg.	Base unit
0101031100	13,0	10	52,0	26,0	1,50	0,010	PCS
0101031150	19,0	15	70,0	35,0	1,50	0,030	PCS
0101031200	23,0	20	80,0	40,0	1,50	0,060	PCS
0101031250	29,0	25	100,0	50,0	1,50	0,100	PCS
0101031320	35,0	32	110,0	55,0	1,50	0,160	PCS
0101031400	41,0	40	120,0	60,0	1,50	0,230	PCS
0101031500	53,0	50	140,0	70,0	1,50	0,240	PCS
0101031650	70,0	65	160,0	80,0	2,00	0,970	PCS
0101031800	85,0	80	180,0	90,0	2,00	1,130	PCS
0101031990	104,0	100	200,0	100,0	2,00	2,340	PCS

Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
