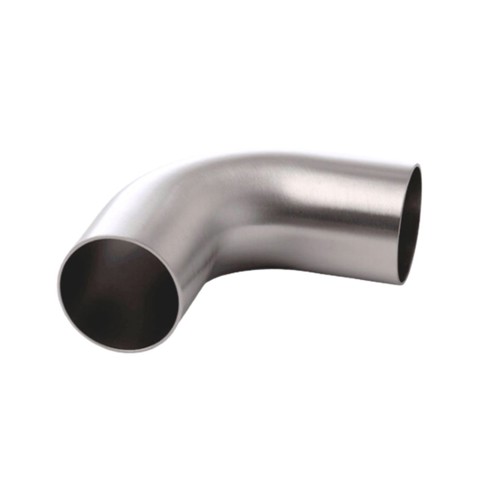

Elbow 90°, DIN

Stained on the inside and ground on the outside.
Delivered with smooth end.

Made of stainless steel AISI 316L / EN 1.4404.

Standard DIN 11852.

Item number	Nominal dim. mm.	Nom. dim. - DN	Installation dim. L mm.	Radius mm	Thickness T mm.	Net weight kg.	Base unit
0101001101	13,0	10	26,0	26,0	1,50	0,020	PCS
0101001151	19,0	15	35,0	35,0	1,50	0,030	PCS
0101001200	22,0	20	40,0	40,0	1,50	0,040	PCS
0101001250	29,0	25	50,0	50,0	1,50	0,050	PCS
0101001320	35,0	32	55,0	55,0	1,50	0,080	PCS
0101001410	41,0	40	60,0	60,0	1,50	0,100	PCS
0101001500	53,0	50	70,0	70,0	1,50	0,170	PCS
0101001650	70,0	65	80,0	80,0	2,00	0,390	PCS
0101001800	85,0	80	90,0	90,0	2,00	0,540	PCS
0101001990	104,0	100	100,0	100,0	2,00	1,170	PCS

Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
