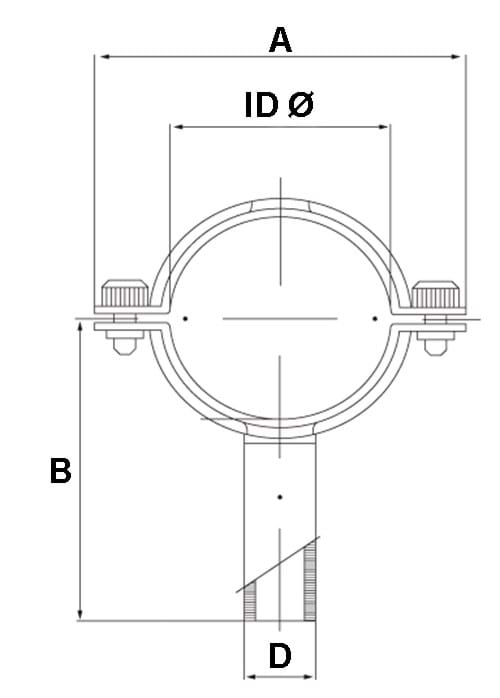

Pipeclip with shaft, Allen bolts, DIN

Delivered with welding base and two Allen screws.

Made of stainless steel AISI 304 / EN 1.4301.

Item number	Nominal dim. mm.	Nom. dim. - DN	ID Ø dia. mm.	Width A mm	Length B mm	Shaft D dia. mm	Net weight kg.	Base unit
0102040029	25,0	25	26,9-29,0	80,0	90,0	21,3	0,230	PCS
0102040035		32	34,0-35,0	88,0	90,0	21,3	0,240	PCS
0102040041	40	40	40,0 -41,0	91,0	90,0	21,3	0,240	PCS
0102040054	50,0	50	52,0-53,0	107,0	90,0	21,3	0,270	PCS
0102040070	65,0	65	70,0 - 71,0	123,0	90,0	21,3	0,300	PCS
0102040085		80	84,0-85,0	137,0	90,0	21,3	0,320	PCS
0102040104	100,0	100	104,0-106,0	157,0	102,0	21,3	0,370	PCS
0102040129	125,0	125	129,0-130,0	182,0	105,0	21,3	0,420	PCS
0102040154	150,0	150	154,0-156,0	207,0	128,0	21,3	0,480	PCS

Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
