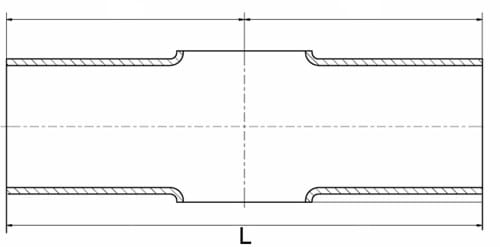

Cross - short, DS/SMS

Stained on the inside and ground on the outside.
Delivered with smooth ends.

Made of stainless steel AISI 316.

Download data sheet

Item number	Nominal dim. mm.	Length L mm.	Installation dim. L mm.	Thickness mm.	Net weight kg.	Base unit
0101700250	25,0	110,0	0	1,2	0	PCS
0101700380	38,0	140,0	22,0	1,2	0,140	PCS
0101700510	51,0	164	29,0	1,2	0,210	PCS
0101700640	63,5	210,0		1,6	0	PCS
0101700760	76,0	220,0	35,0	1,60	0,650	PCS
0101701020	101,6	300,0	0	2,0	0	PCS

Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
