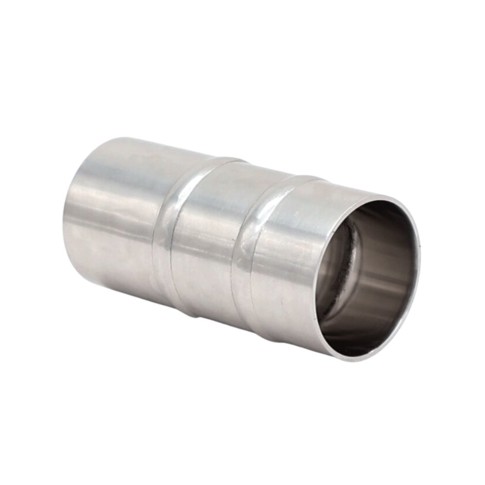

Hose connection, DS/SMS, 2 beadings

Stained on the inside and ground on the outside.
Delivered with smooth ends and two beadings.

Made of stainless steel AISI 316.

Download data sheet

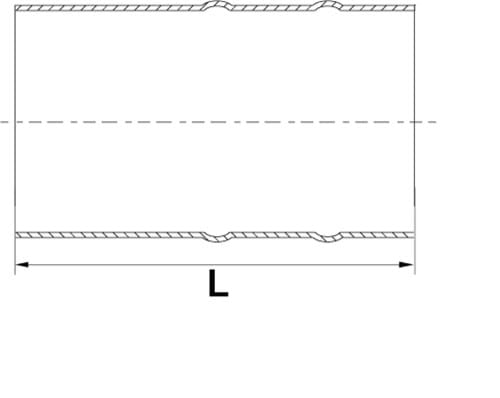

Item number	Nominal dim. mm.	Length L mm.	Thickness mm.	Net weight kg.	Base unit
0101750251	25,0	60,0	1,20	0,030	PCS
0101750381	38,0	80	1,20	0,090	PCS
0101750511	51,0	90,0	1,20	0,140	PCS
0101750641	63,5	100,0	1,60	0,270	PCS
0101750761	76,0	110,0	1,60	0,350	PCS
0101751021	101,6	120,0	2,00	0,490	PCS

Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
