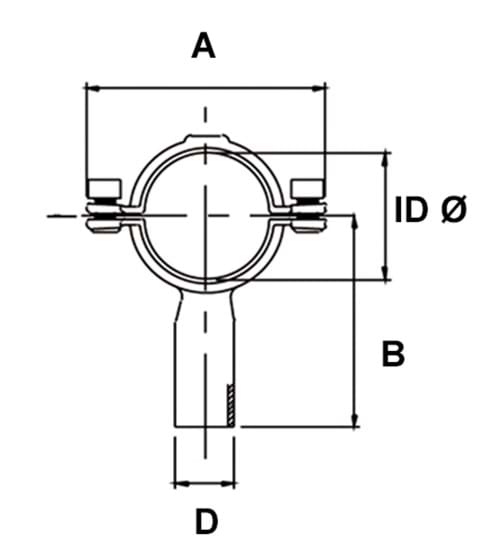

Pipeclip short shaft, 90 mm, DS/SMS

Delivered with welding base and two Allen screws.

Made of stainless steel AISI 304 / EN 1.4301.

Download data sheet

Item number	Nominal dim. mm.	Width A mm	Length B mm	ID Ø dia. mm.	Shaft D dia. mm	Net weight kg.
0102010250	25,0	80,0	90,0	25,0	21,3	0,260
0102010380	38,0	93,0	90,0	38,0	21,3	0,280
0102010510	51,0	103,0	90,0	51,0	21,3	0,300
0102010640	63,5	118,0	90,0	63,5	21,3	0,320
0102010760	76,1	132,0	90,0	76,1	21,3	0,340
0102011020	101,6	157,0	90,0	101,6	21,3	0,380

Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
