DS liner, expansion

Internal surface roughness of R 0.8 ยต and provided with a batch number.
Designed with grooves for deep rolling on stainless steel dairy pipes.

Made of AISI 304/ EN 1.4301 stainless steel.

Download data sheet

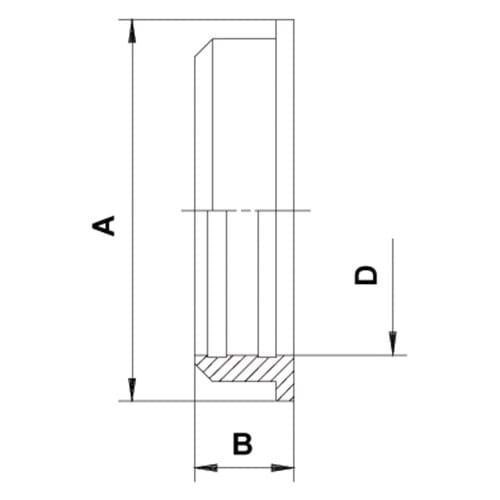

Item number Nominal dim.
mm.		 A dia.
mm		 D dia.
mm.		 Length B
mm		 Net weight
kg.		 Quantity
0101140250 25,0 40,0 25,0 16,0 0,056
0101140380 38,0 54,0 38,0 18,0 0,090
0101140510 51,0 68,0 51,0 20,0 0,148
0101140640 63,5 84,0 63,5 22,0 0,232
0101140760 76,1 96,0 76,0 24,0 0,284
0101141020 101,6 124,0 101,6 29,0 0,530
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
