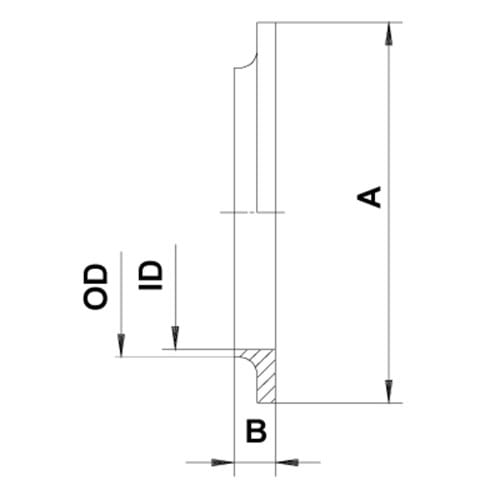

DS liner, weld on

Internal surface roughness of R 0.8 µ and provided with a batch number.
Designed with collar for welding on stainless steel dairy pipes.

Made of stainless steel AISI 316L / EN 1.4404.

Download data sheet
Item number Nominal dim.
mm.		 A dia.
mm		 ID Ø dia.
mm.		 OD Ø dia.
mm.		 Length B
mm		 Net weight
kg.		 Quantity
0101160250 25,0 40,0 22,6 25,6 11,0 0,056
0101160380 38,0 54,0 35,6 38,6 11,0 0,057
0101160510 51,0 68,0 48,6 51,6 11,0 0,120
0101160640 63,5 84,0 60,3 64,1 12,0 0,200
0101160760 76,1 96,0 72,9 76,7 12,0 0,250
0101161020 101,6 124,0 97,6 102,5 12,0 0,510
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
