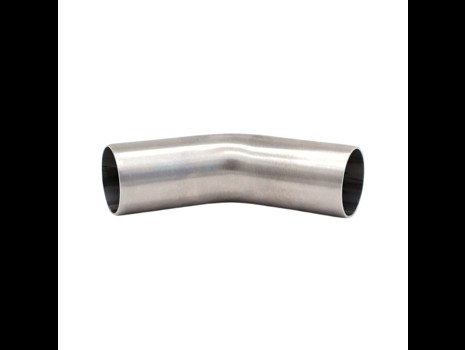

Elbow 45°, DS/SMS
Elbow 45°, DS/SMS

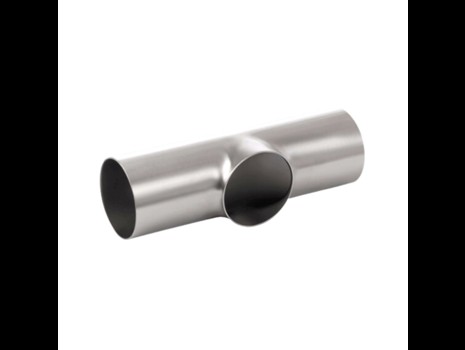

Tee - short, DIN
Tee - short, DIN

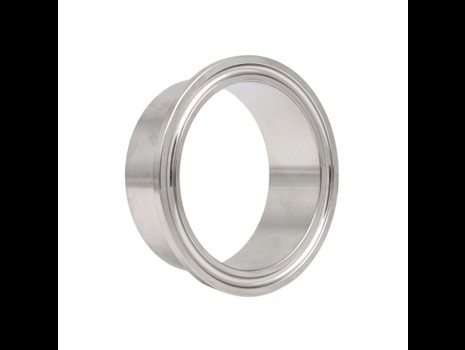

DIN Clamp liner
DIN Clamp liner

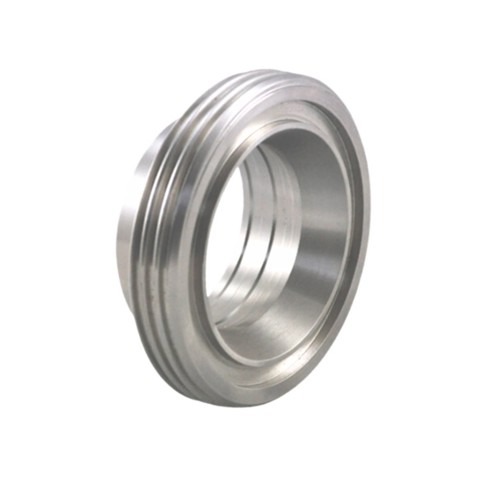

DS reduction male, expansion

Internal surface roughness of R 0.8 ยต and provided with a batch number.
Designed with grooves for deep rolling on dairy pipes.

Made of AISI 316L / EN 1.4404 stainless steel.

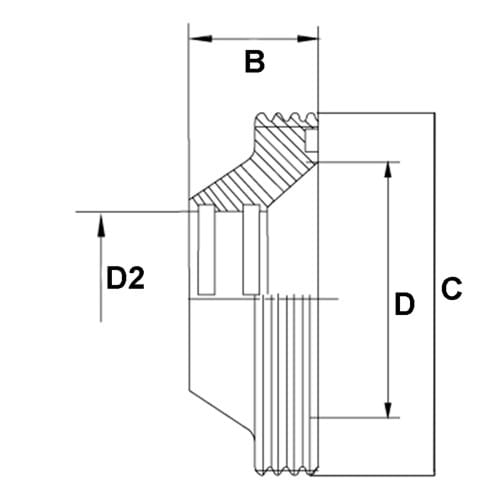

Item number Nominal dim.
mm.		 C dia.
mm.		 D dia.
mm.		 D2 dia.
mm.		 Length B
mm		 Base unit Quantity
0101170380 38,0 58,0 x 1/6 38,0 25,0 30,0 PCS
0101170510 51,0 72,0 x 1/6 51,0 25,0 32,0 PCS
0101170511 51,0 72,0 x 1/6 51,0 38,0 38,0 PCS
0101170641 63,5 88,0 x 1/6 63,5 38,0 42,0 PCS
0101170642 63,5 88,0 x 1/6 63,5 51,0 42,0 PCS
0101170761 76,0 100,0 x 1/6 76,0 51,0 44,0 PCS
0101170762 76,0 100,0 x 1/6 76,0 63,5 44,0 PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
