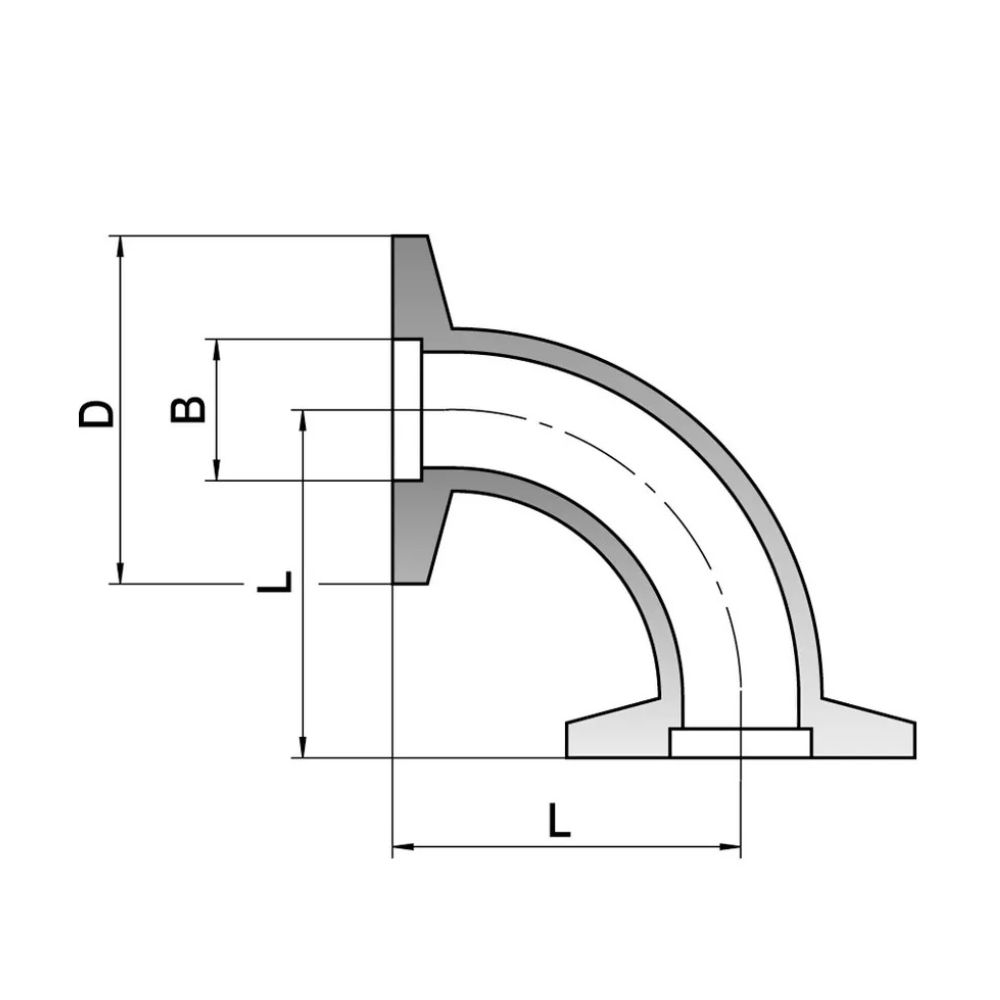

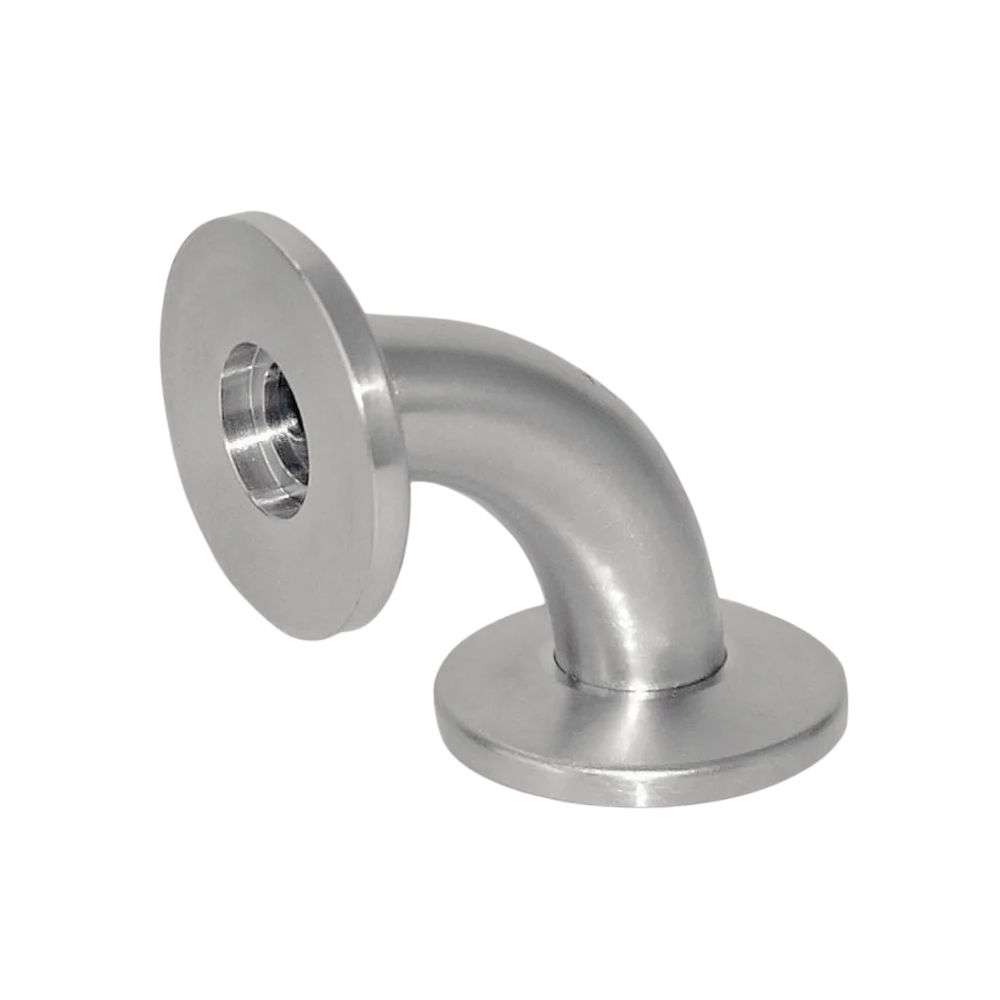

Vacuum elbow, 90°, KF

Application:

Vacuum elbow in accordance with the KF standard (Klein Flange), used to change the direction of piping by 90° in a vacuum system. The elbow enables a compact and precise angle change between the system’s other components, such as pipes, valves, vacuum chambers and pumps. As the fitting can be installed and removed entirely without the use of tools, it is ideal for flexible vacuum systems requiring frequent maintenance or ongoing changes to the set up.

Construction:

The elbow is designed with a smooth internal radius to ensure optimal flow and minimal resistance in the vacuum system. It is fitted at both ends using standard centring rings with built-in gaskets, which are secured with external KF clamps. The construction ensures a quick and reliable seal, suitable for low, medium and high vacuum.

• Complies with DIN 28403 and ISO 2861 standards.
• Connections are available from DN10 to DN50.
• The vacuum pressure depends on the selected O-ring material.

Quality:

Manufactured from AISI 316L stainless steel. The material and precise design guarantee optimum corrosion resistance and full compatibility with other standardised KF components in accordance with the applicable DIN/ISO standards.

Vacuum/negative pressure:

10⁻⁷ mbar.
