Vacuum center ring with gasket

Application:

Vacuum centring ring with gasket according to the KF standard, which acts as a seal between two flanges. The centring ring ensures a stable transition and a vacuum-tight connection in pipes, valves and pumps. Mainly used in the chemical, medical and food industries

Construction:

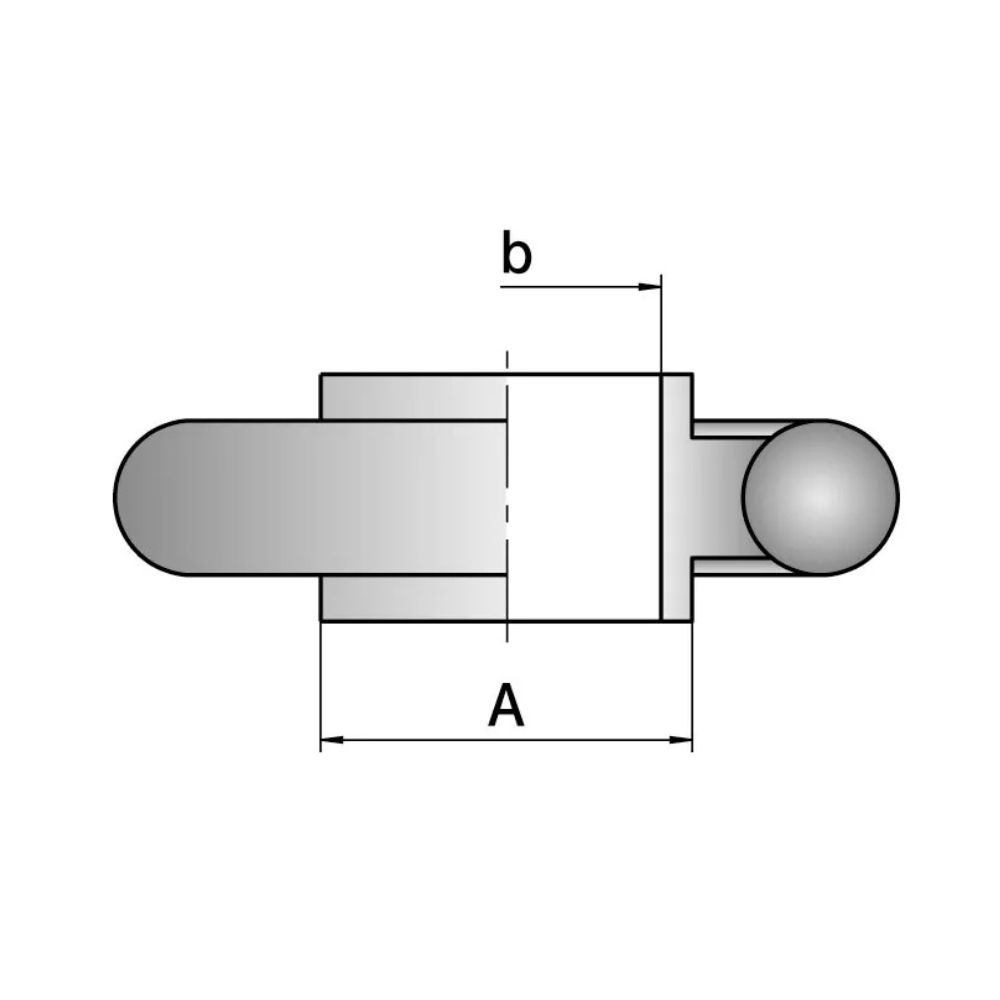

The ring consists of an inner metal ring that holds an elastomer gasket (O-ring).

• Complies with DIN 28403 and ISO 2861 standards.
• Connections are available from DN10 to DN50.

Quality:

Manufactured in AISI 316L stainless steel, and the seal is available in either NBR or viton. The choice of materials and precise workmanship guarantee complete compatibility with other standardised KF components in accordance with the applicable DIN/ISO standards.

Vacuum pressure:

10-7 mbar
