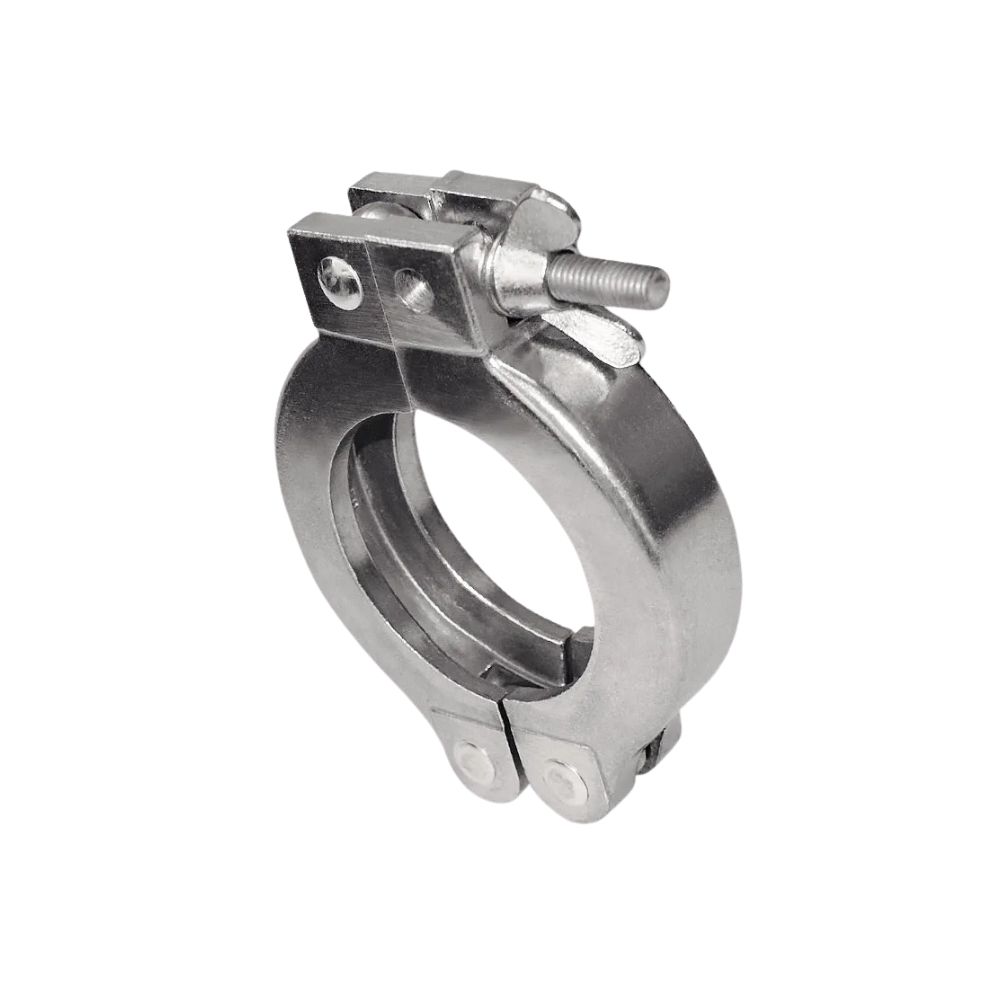

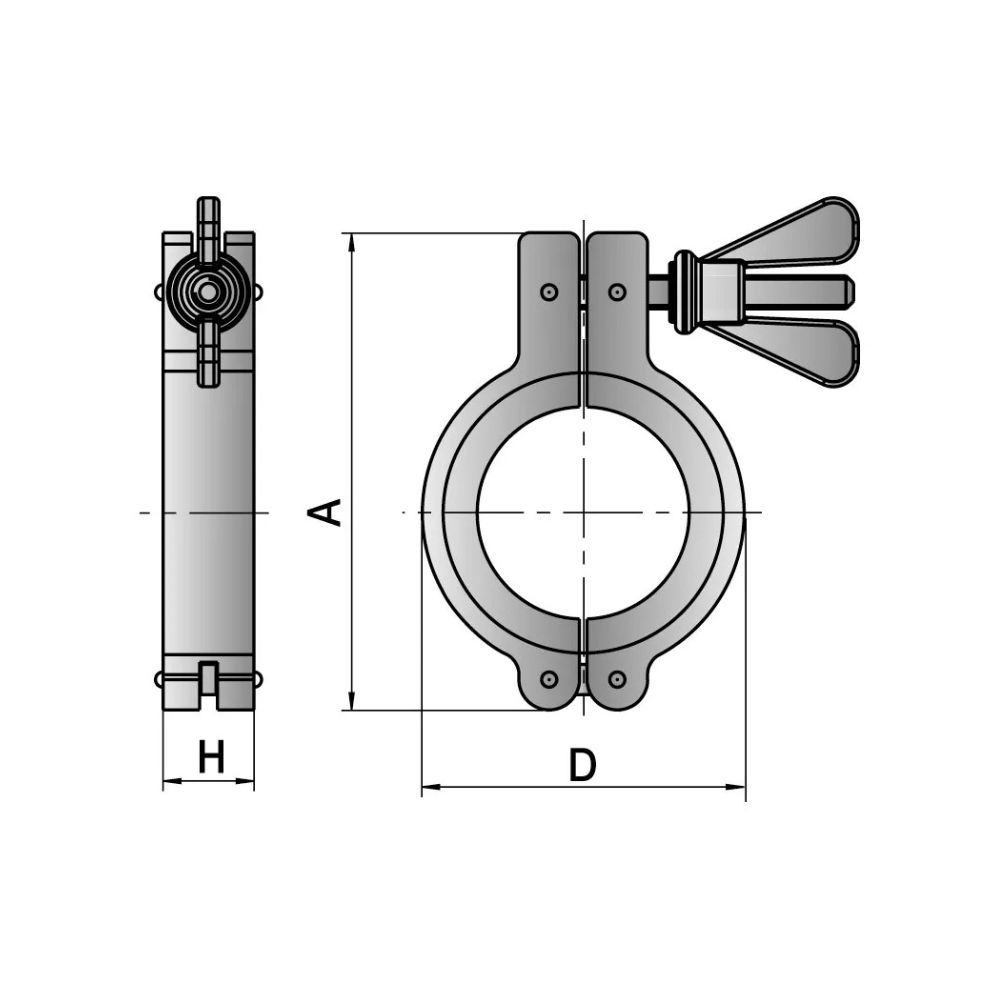

Vacuum clamping ring

Application:

Clamping ring according to the KF standard, used to hold two flanges around a centring ring with elastomer seal. The clamp can be mounted and removed without tools, making it ideal for vacuum systems with frequent maintenance or systems that need to be reconfigured often.

Construction:

The clamping ring is equipped with a wing screw that ensures uniform and controlled compression of the seal for a vacuum-tight connection. The design protects the flange surfaces from overload and ensures quick installation without the use of loose bolts or nuts.

• Complies with DIN 28403 and ISO 2861 standards.
• Fits all KF flanges of the corresponding nominal size.
• Designed for quick opening and closing of the vacuum system.

Quality:

Made of AISI 316 stainless steel. The precise mechanical design guarantees full compatibility with other standardised KF components and ensures long service life with repeated use.

Vacuum pressure:
10-7 mbar.
