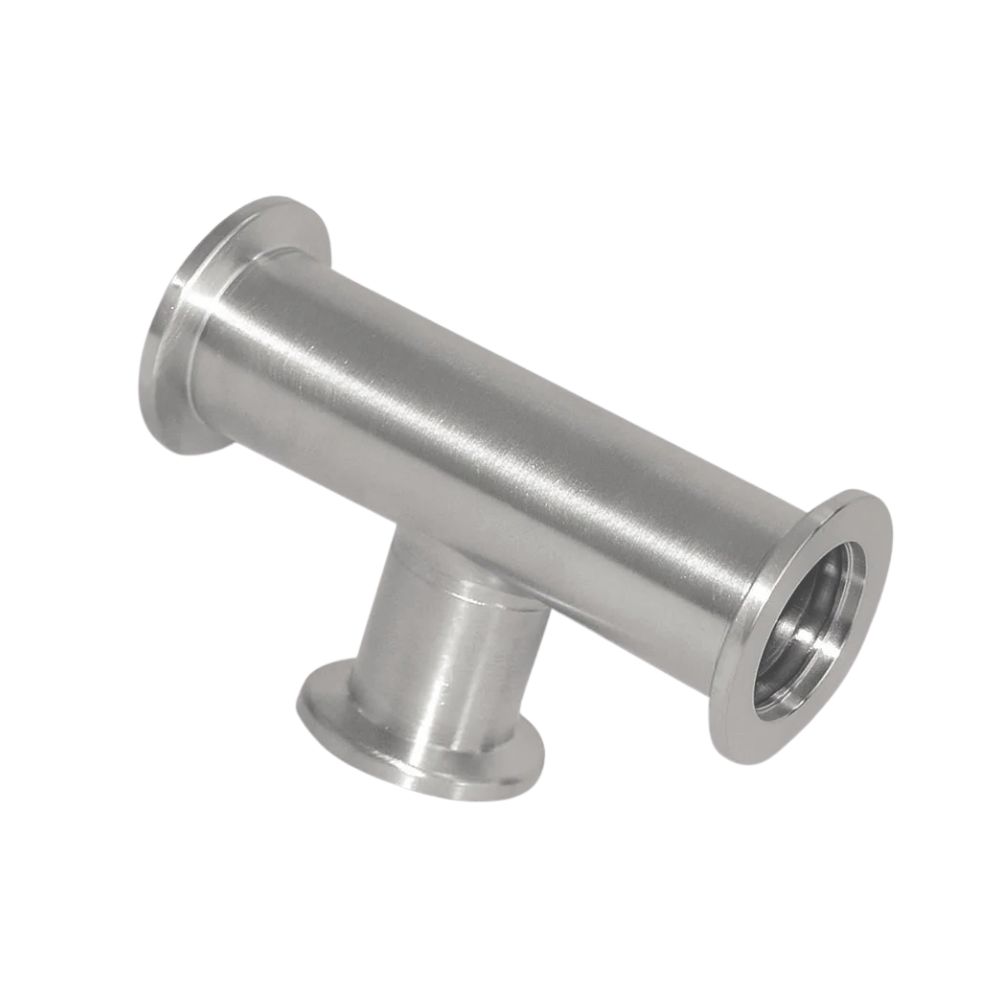

Vacuum tee, KF

Application:

Vacuum tee in accordance to the KF standard (Klein Flange), used to split, join or create a branch in the piping of a vacuum system. The equal tee is ideal for integrating additional components or measuring equipment into the process, such as pressure gauges, sensors, vent valves or an additional vacuum pump. As the fittings can be fitted and removed entirely without the use of tools, the component ensures maximum flexibility in systems requiring frequent cleaning, maintenance or changes to the layout.

Construction:

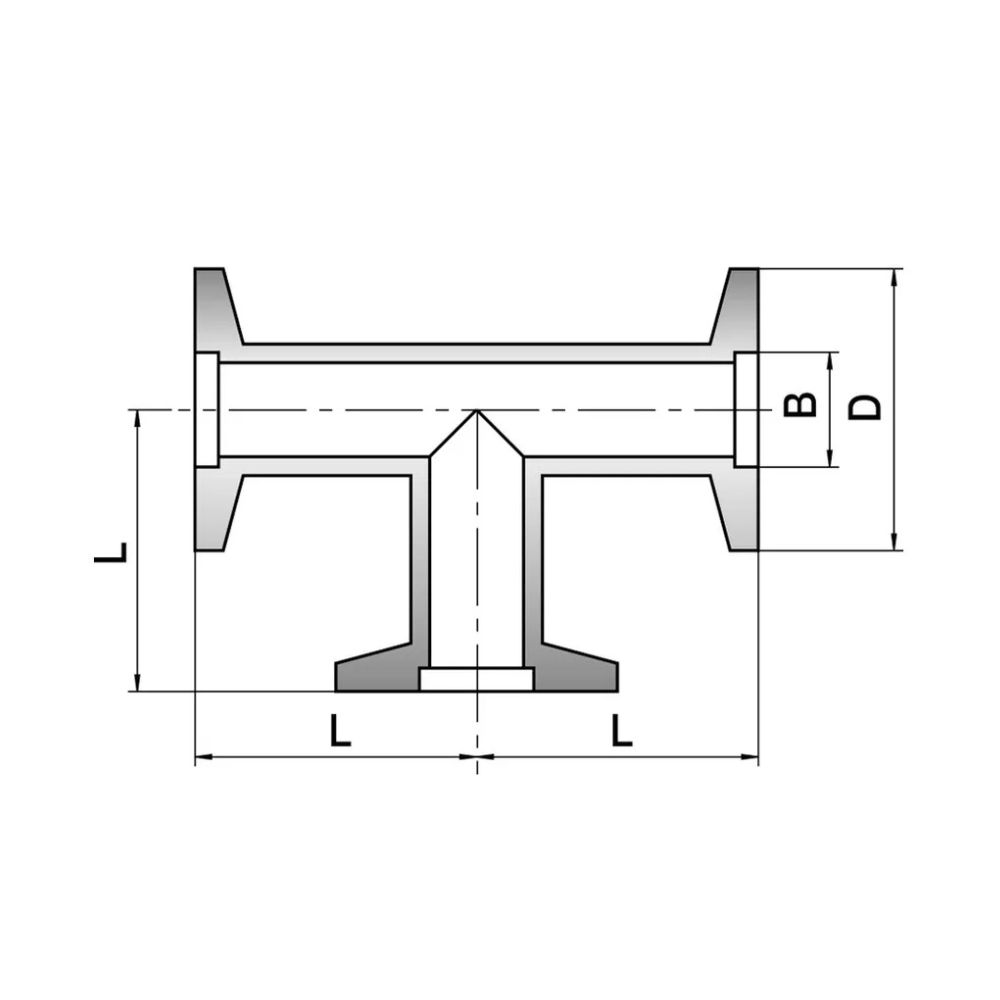

The tee features precise, perpendicular branches that ensure optimal flow through the vacuum system. It is fitted at all three ends using standard centring rings with built-in gaskets, which are secured with external KF clamps. The construction ensures a quick and reliable seal, suitable for low, medium and high vacuum.

• Complies with DIN 28403 and ISO 2861 standards.
• Connections are available from DN10 to DN50.
• The vacuum pressure depends on the selected O-ring material.

Quality:

Manufactured from AISI 316L stainless steel. The material and precision machining guarantee optimum corrosion resistance and full compatibility with other standardised KF components in accordance with the applicable DIN/ISO standards.
