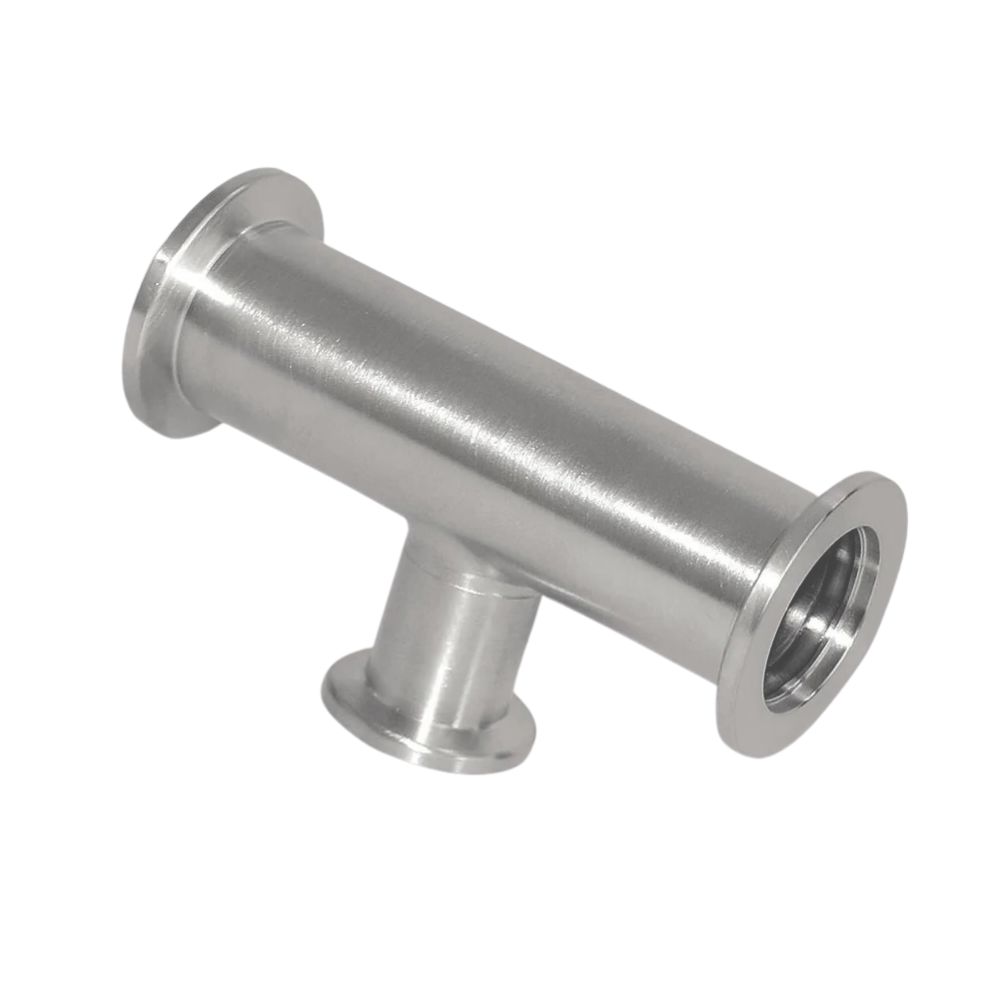

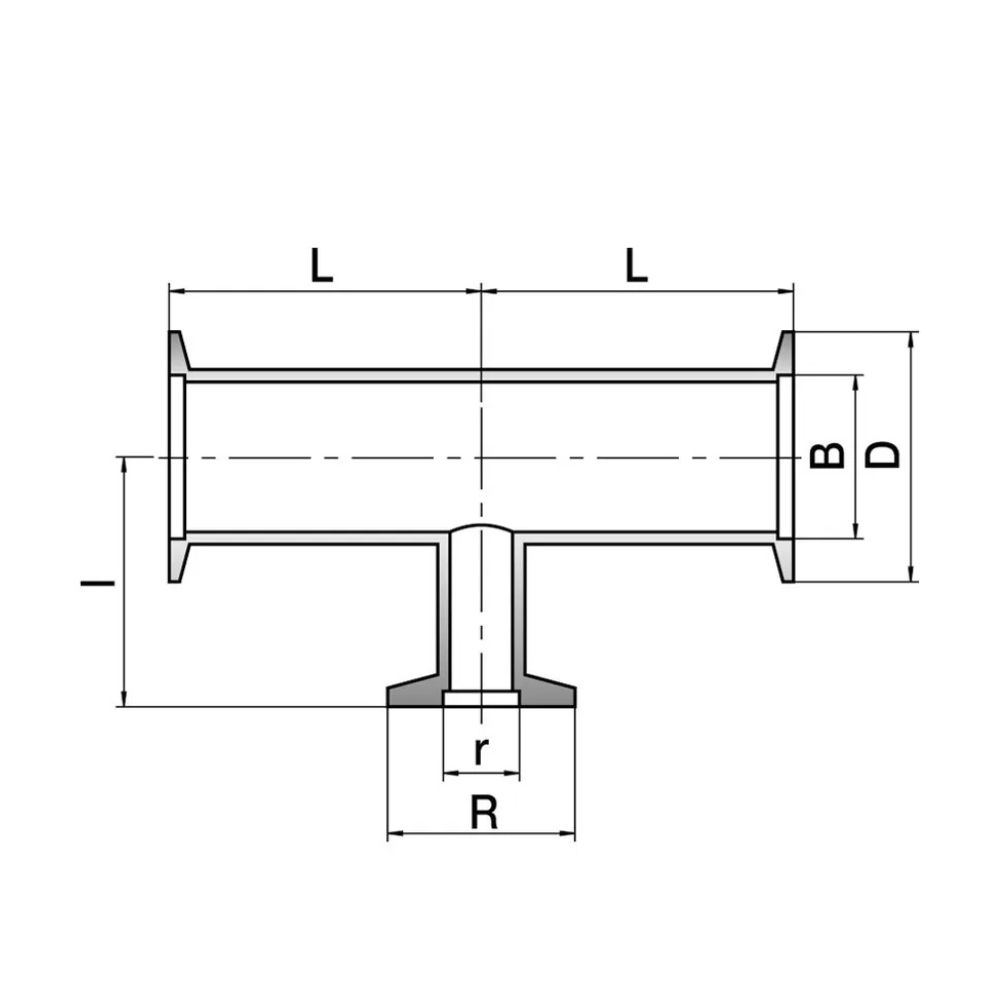

Vacuum tee, reduction, KF

Application:

Vacuum tee in accordance to the KF standard (Klein Flange) with a reduction, enabling two different pipe sizes to be connected directly within a single component. The equal tee is ideal for integrating smaller components or measuring equipment (such as pressure gauges, sensors or small control valves) directly onto a larger main line in the process. As the joints can be fitted and removed entirely without the use of tools, the component ensures maximum flexibility in systems requiring frequent cleaning, maintenance or changes to the layout.

Construction:

The equal tee features a precise, right-angled and reduced branch, ensuring a smooth transition between the system’s different dimensions. It is fitted at all three ends using standard centring rings with built-in gaskets, which are secured with external KF clamps adapted to the specific connection sizes on the main line and branch respectively. The construction ensures a quick and reliable seal, suitable for low, medium and high vacuum.

• Complies with DIN 28403 and ISO 2861 standards.
• Connections are available in sizes from DN25/DN16 to DN50/DN40.
• The vacuum pressure depends on the selected O-ring material.

Quality:

Manufactured from AISI 316L stainless steel. The material and precision machining guarantee optimum corrosion resistance and full compatibility with other standardised KF components in accordance with the applicable DIN/ISO standards.

Vacuum/negative pressure:

10⁻⁷ mbar.
