Hygienic flow control with non-return valves for dairy pipes

Non-return valves are a small but vital component of your pipework system. They ensure that liquids or gases flow in only one direction and close automatically as soon as the flow reverses. In this way, they protect both your equipment and your end product from the undesirable consequences of backflow.

A sudden drop in pressure or an unexpected stoppage in the flow can send liquids or gases back the way they came. Without a non-return valve, this can both damage the equipment and create hazardous situations for staff. The non-return valve reacts instantly and closes before any damage occurs.

Non-return valves can also be used to control the flow more precisely. You can choose a type that opens and closes at specific pressure levels, so that the medium is regulated through the pipeline according to your requirements.

Types and applications

collage of non-return valves for dairy pipes

The right non-return valve depends on the size, operating conditions and the task it is to perform in your plant. Non-return valves can be fitted both vertically and horizontally, giving you flexibility in pipework layout, and they are positioned within the pipework system where it's important to prevent backflow.

In our range, you’ll find two types of non-return valves for dairy pipework that cover the most common requirements in sanitary process installations:

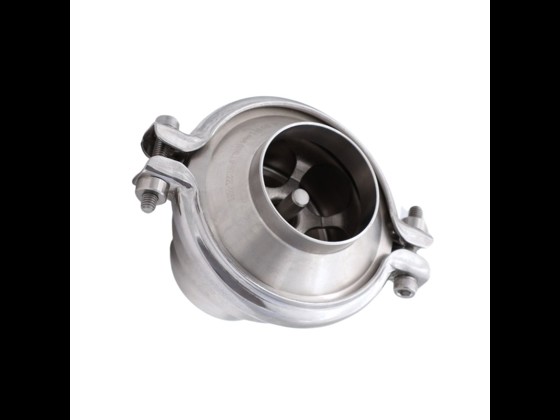

  • LKC-2 non-return valve – a spring-loaded, two-piece non-return valve in AISI 316 stainless steel with an EPDM gasket, ensuring unidirectional flow in sanitary dairy pipework installations. It is easy to clean and is available in sizes from 25 mm to 102 mm.

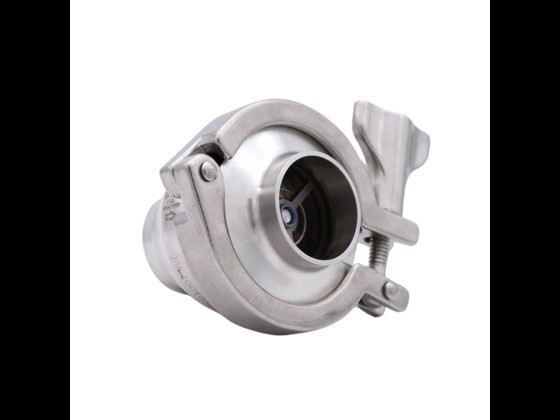

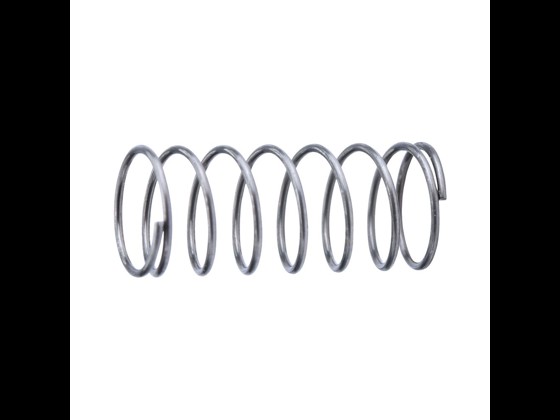

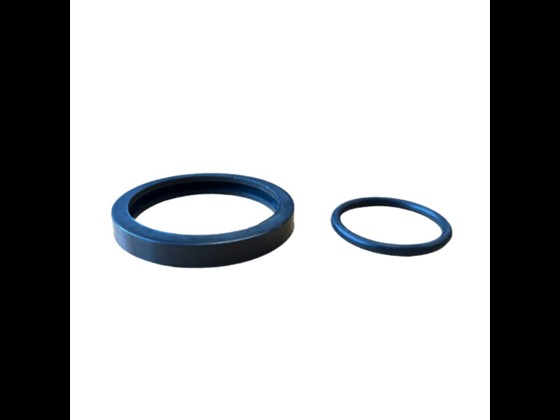

  • AWH non-return valve – a spring-loaded, two-piece non-return valve made of AISI 316L stainless steel with EPDM gaskets and an internal surface roughness of Ra ≤ 0.8 µm, available in two versions with either ISO weld ends (1" to 4") or DIN weld ends (DN25 to DN100). You can also order springs and seal kits as separate spare parts for this series, enabling you to service existing installations without having to replace the entire valve.

Common to both types is that they are assembled using a clamp ring and feature a parallel-flow construction with weld ends. They have a working pressure of up to 10 bar and cover a temperature range from -10°C to +140°C. The gaskets are supplied as standard in EPDM, but are also available in viton if the medium requires it. Our non-return valves are suitable for handling both foodstuffs and more aggressive media in hygienic installations. You will find them used in, amongst other things:

  • Food and beverage production
  • Dairies and breweries
  • Slaughterhouses and meat processing
  • Pharmaceutical production
  • Water systems with hygienic design requirements
staff preparing dairy products

Benefits of using non-return valves

  • Improved safety: The non-return valve only allows flow in one direction and closes immediately when the flow reverses. This keeps hazardous substances out of areas where they should not be and protects your equipment from damage.
  • Protection against water hammer: By slowing down backflow, non-return valves reduce the risk of water hammer – in other words, the pressure surge that occurs when a liquid suddenly changes direction. Without this protection, water hammer can cause cracks, breaks or deformation in both pipes and equipment.
  • Product and equipment protection: In dairy pipework, non-return valves are widely used to protect your finished product and equipment from backflowing liquids. This reduces the risk of cross-contamination and the production stoppages that can result.
  • Reliable operation: A correctly installed non-return valve keeps your pipework system running and minimises the risk of unexpected downtime.

Smooth surfaces for better hygiene

quality assurance by a pharmaceutical staff member

In a sanitary dairy pipework system, it's not only the valve's function that determines hygiene. Surface roughness plays a crucial role. The smoother the internal surface is, the fewer places there are for bacteria and media residues to accumulate – and the more effectively the valve is cleaned during a CIP or SIP cycle.

Our AWH non-return valves are manufactured with an internal surface roughness of Ra ≤ 0.8 µm, which meets the requirements of most hygienic food and process plants. In practice, this means that the surface is smooth enough to prevent biofilm formation, facilitate cleaning and maintain top product quality throughout the entire operating cycle.

Considerations when selecting a non-return valve

processing plant in the food industry

When installing a non-return valve in your pipework system, a thorough assessment of the system itself is required. Non-return valves provide a high level of protection against backflow, but they also result in a certain amount of pressure drop, which is worth taking into account.

You should therefore consider a number of factors: the risk of water hammer, an acceptable pressure drop, and the financial implications of choosing a non-return valve with too high a safety margin. A thorough analysis will help you make the right choice, ensuring the non-return valve protects your system without unnecessarily hindering operations.

Finding the right non-return valve for your specific application is not always straightforward. We have over 40 years’ experience in the process industry and are happy to help you make the right choice. You can call us on +45 7020 0422 or email inquiry@alfotech.eu. We’ll get back to you as soon as possible.

Frequently asked questions

What is the difference between an LKC-2 and an AWH non-return valve?

Both the LKC-2 and the AWH are spring-loaded, two-piece non-return valves with the same basic function: to ensure unidirectional flow in sanitary dairy pipework systems. The difference lies in the fact that they come from two different component series, each with their own dimensions and configurations. The LKC-2 is manufactured from AISI 316 and is available in sizes from ø 25 to ø 102 mm, whilst the AWH is manufactured from AISI 316L with an internal surface roughness of Ra ≤ 0.8 µm and is available with both ISO and DIN weld ends.

What is the difference between a non-return valve with an ISO weld end and one with a DIN weld end?

The difference lies in the pipe standard for which the non-return valve is designed to be welded. ISO and DIN are two different European pipe standards, in which the pipes have different dimensions and tolerances. To ensure a tight and reliable joint, the non-return valve’s weld end must match the pipe standard you are already using. You should therefore check the existing pipe standard before placing your order.

What media can your non-return valves handle?

Our non-return valves for dairy pipes are suitable for a wide range of media in sanitary process installations, including water, milk, beverages, CIP and SIP liquids, as well as more aggressive media depending on the chosen gasket material. For specific media or aggressive chemicals, we always recommend checking the data sheet or contacting our specialists for an assessment.

How often should gaskets and springs be replaced?

The maintenance interval depends on the medium, operating temperature and the number of open/close cycles. As a rule of thumb, you should inspect the gaskets and springs at every scheduled service and replace them as soon as there are signs of wear, deformation or reduced sealing performance. Springs and seal kits for the AWH series are available as separate spare parts, so you can service existing valves without replacing the entire assembly.
