Stainless steel bellow hoses for demanding pressure and temperature conditions

Do you work in a process plant where high demands are placed on temperature resistance, pressure strength and flexibility? Then a stainless steel bellow hose is often the right solution. We supply flexible stainless steel hoses for food production, pharmaceutical plants and the chemical industry, where operational reliability and documented quality are required. When you choose a stainless steel bellow hose, you get a robust and durable connection that can withstand even the most demanding conditions.

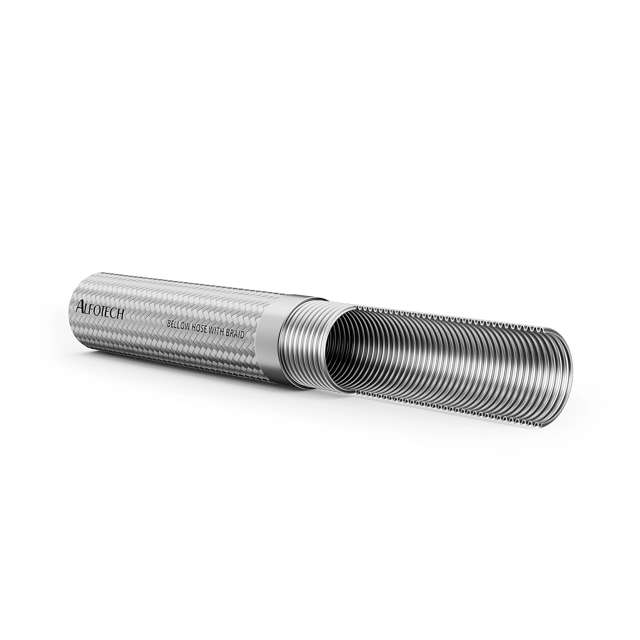

A stainless steel bellows hose is a metal hose designed with a corrugated inner hose in stainless steel – typically AISI 316 or 321L. This gives you a combination of flexibility and strength in the same solution. On the outside, the hose is reinforced with stainless steel braid in AISI 304L or AISI 316, which increases its resistance to pressure and wear. If you work in an environment with high hygiene requirements, you can choose a silicone coating that protects up to 200 °C and also makes cleaning easier. In practice, you can use a stainless bellow hose for hot water and supply installations – but also as a compensation piece to absorb thermal expansion, as a high-vacuum hose or as a gas hose in industrial plants.

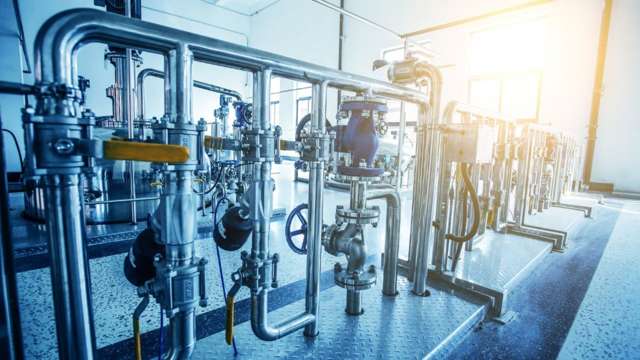

You will find stainless bellow hoses in virtually all areas of the process industry – from dairies and breweries to pharmaceutical and chemical plants. You choose this solution when you need a tight, flexible and temperature-resistant connection that can also be documented in accordance with applicable standards. We can fit exactly the fittings you need – for example, weld ends, threads or flanges – so that the hose fits directly into your plant. This gives you a flexible stainless hose that is tailored to your specific operating conditions. Temperature, pressure, vibration level and available space are important factors when choosing the right hose solution. By considering these factors in advance, you ensure that the hose is correctly dimensioned and functions optimally in your plant.

When you choose us, you get more than just a standard component. In our own assembly workshop, certified welders and experienced metalworkers assemble your hose with full control over the entire process – from consultation and design to welding, marking and final inspection.

We review your requirements in detail, visualise the finished solution and then produce it in our own workshop. With over 40 years of experience, we know how to design and integrate a stainless bellow hose to give you stable operation, low maintenance and a long service life.

Yes. A stainless bellows hose is designed to withstand high temperatures and pressures. If you work with steam or hot water, you can rely on the hose to provide you with a reliable solution.

A stainless steel bellow hose is a flexible hose made of stainless steel that can withstand much higher loads than plastic or rubber hoses. When you choose this type of metal hose, you get a longer service life and greater reliability in demanding production environments.

With our online hose configurator, you can select dimensions, lengths and fittings and send your configuration directly to us. We will then deliver a bellows hose that fits your system perfectly.

You can choose from a wide range of fittings, including flanges, weld on, threads, DIN, SMS and clamp fittings. We install them in our own workshop to ensure that your hose fits your production environment perfectly.
