Stainless hose reels for storage of flushing and compressed air hoses

We offer stainless hose reels designed for use in the food industry, pharmaceutical production and other environments with high demands on hygiene and safety. Our standard range of hose reels is made of AISI 304 (EN 1.4301) stainless steel, but is also available in AISI 316L (EN 1.4404) and meets industry requirements for cleaning, corrosion resistance and long service life. They are suitable for handling compressed air, water and cleaning agents in both stationary and mobile installations.

Our hose reels in AISI 304 (EN 1.4301) stainless steel are designed for use in industrial environments where ease of cleaning and material resistance are crucial. They are particularly used in food production, dairies and pharmaceutical plants, where equipment is regularly exposed to moisture, pressure and powerful cleaning agents – including both alkaline and acidic solutions. The robust construction and smooth surface design make them easy to maintain and ensure stable operation in conditions where hygiene, durability and safety are paramount.

A comprehensive hose management solution not only ensures operational reliability, but also contributes significantly to a safer and more efficient working environment. Stainless hose reels prevent hoses from lying on the floor, where they can cause a trip hazard or become damaged during daily use. When hoses are kept properly coiled, they are also protected against kinking and overloading, which ultimately extends their service life.

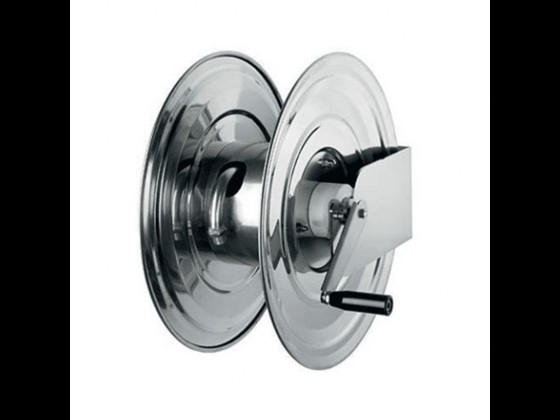

Our range includes both spring-driven and manual models, depending on your needs and workflow. For installations with longer and heavier hoses – or where the reeling needs to be integrated into an automated process – we can also supply motorised solutions. Several models can also be equipped with a safety brake, which brakes the reeling and thus ensures more controlled and gentle handling. This reduces the risk of damage and also reduces hose wear.

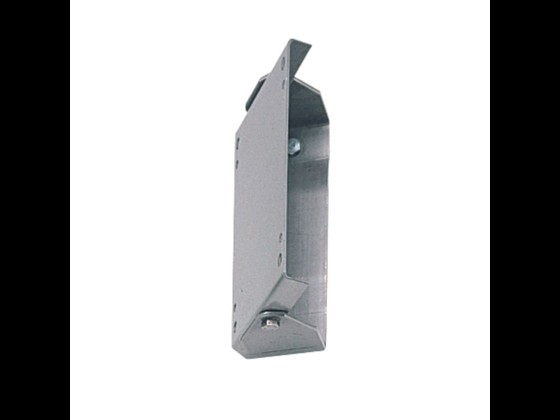

Our spring-driven hose reels are equipped with powerful return springs that ensure smooth and reliable winding. For extra flexibility, many models can be fitted with a swivel wall bracket, which makes it easier to work ergonomically and efficiently on a daily basis. The bracket is not included as standard, but can be purchased as part of a complete solution.

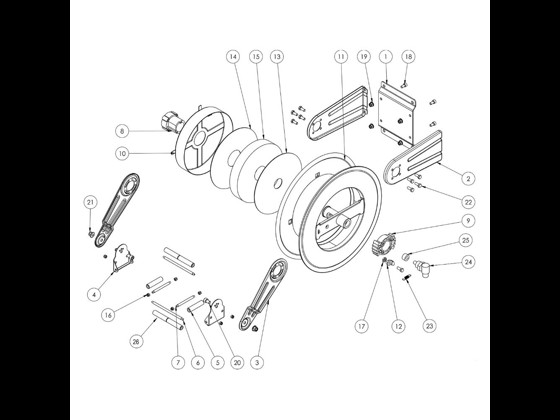

For many of the models, we also offer spare parts kits, so you can simply replace individual wear parts instead of the entire unit. This provides a more sustainable and economical solution and ensures stable operation over time. In addition, we naturally offer support for installation, maintenance and spring adjustment.

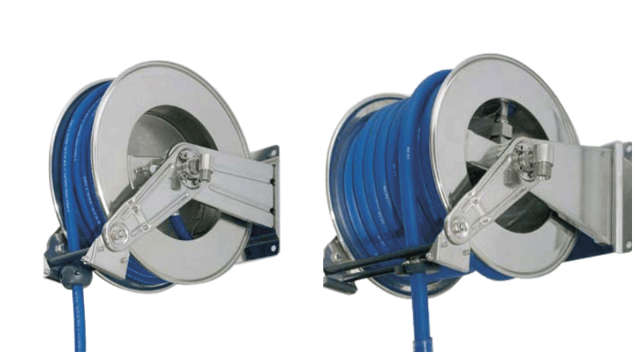

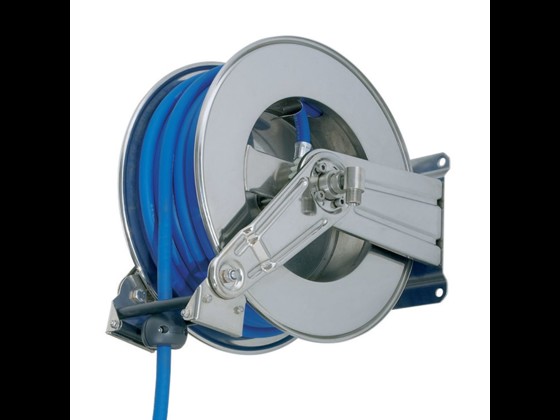

Among our most popular models is the AFT 1000/1100 AV. A compact and hygienic spring reel, suitable for shorter hoses and smaller work areas. It supports up to 1/2" hose dimensions and pressures up to 200 bar. This makes it ideal for cleaning stations where space is limited and frequent washing occurs.

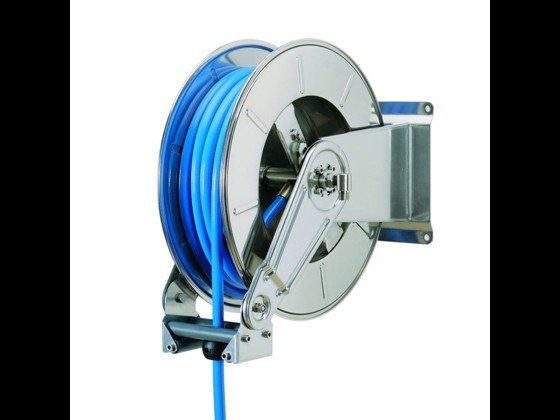

For larger installations, we recommend the AFT 3500/3503 AV. This powerful model handles hoses up to 1" and lengths up to 20 metres. It is suitable for environments with high throughput and intensive operation and can be equipped with adjustable hose guidance. The AFT 3500/3503 AV is characterised by its stable and reliable spring return, which ensures uniform winding even under demanding conditions. It also has a large drum diameter, which reduces the load on the hose during use.

Both hose reels can be equipped with adjustable hose guides and hinged wall brackets. We offer advice on the selection of hoses, fittings and pressure classes to ensure that the solution matches your operating situation.

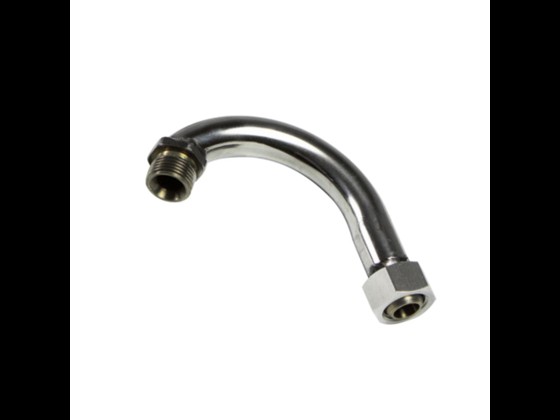

Our stainless hose reels can be used with compressed air, cold and hot water, and cleaning agents. Parts such as swivels and elbows that come into contact with the product are made of AISI 316 (EN 1.4401). The choice of hose depends on the chemical composition and temperature of the medium.

The reel itself is made of AISI 304 stainless steel, which is suitable for application in food areas. Parts such as swivels and elbows that come into contact with the product are made of AISI 316 (EN 1.4401). For full food approval, a certified hose is required.

Yes, several of our models can be used for hot water – typically up to approx. 90 °C depending on the hose specifications.

Ja, vi tilbyder skræddersyede løsninger tilpasset dit behov. I fælles dialog finder vi den rette model, slangetype, dimension, længde og tilslutning. Vi kan også levere reservedelskits og ekstraudstyr som sikkerhedsbremser. Kontakt os for teknisk sparring og den optimale løsning til din drift.

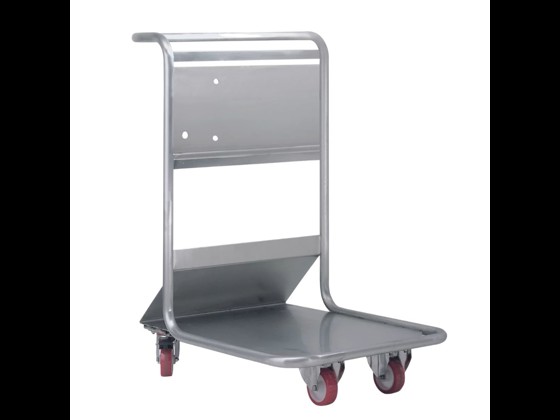

Ja, flere modeller kan monteres på vægge eller på mobile enheder. Det giver fleksibilitet i indretningen og bedre adgang i produktionsområder med begrænset plads.
